ZigBee Automatic 38mm Smart Tubular Roller Blinds Motor RF433 Remote Control

• RF Wall remote control as crystal type single or double channel emitter or protable remote with single,double,six and sixteen channels availablefor adding convenience to control connected devices.
• A ZigBee hub is required for connecting with the motor.
• Powerful enough to work with various motorized roller blinds,roller shutter,wooden venetian blinds,and even motorized clothes pole.
• Multiple 6 limits setting by remote:6 limits can be set(2 end limits and 4 middle limits）via Remote,simplify your operation in different locations.
• Automatic correction function for the displacement generated by braking.Compatible with Alexa Echo and Google Home in MOES app.
• Ultra-quiet design supports to lower noise to 40dB.Stop at obstacle to protect the device and users from damage;Short circuit protection&open circuit protection for sensor.
• Application：

Automatic 25mm Smart ZigBee Tubular Roller Blinds Motor DC Lithium Built-in Receiver RF433 Remote Control for 38mm Tube

Package Listing:

• Tubular Motor*1(RF remote not included)
• Basic Kit*1( Wall Bracket *2 , Idler*1)
• English Manual*1

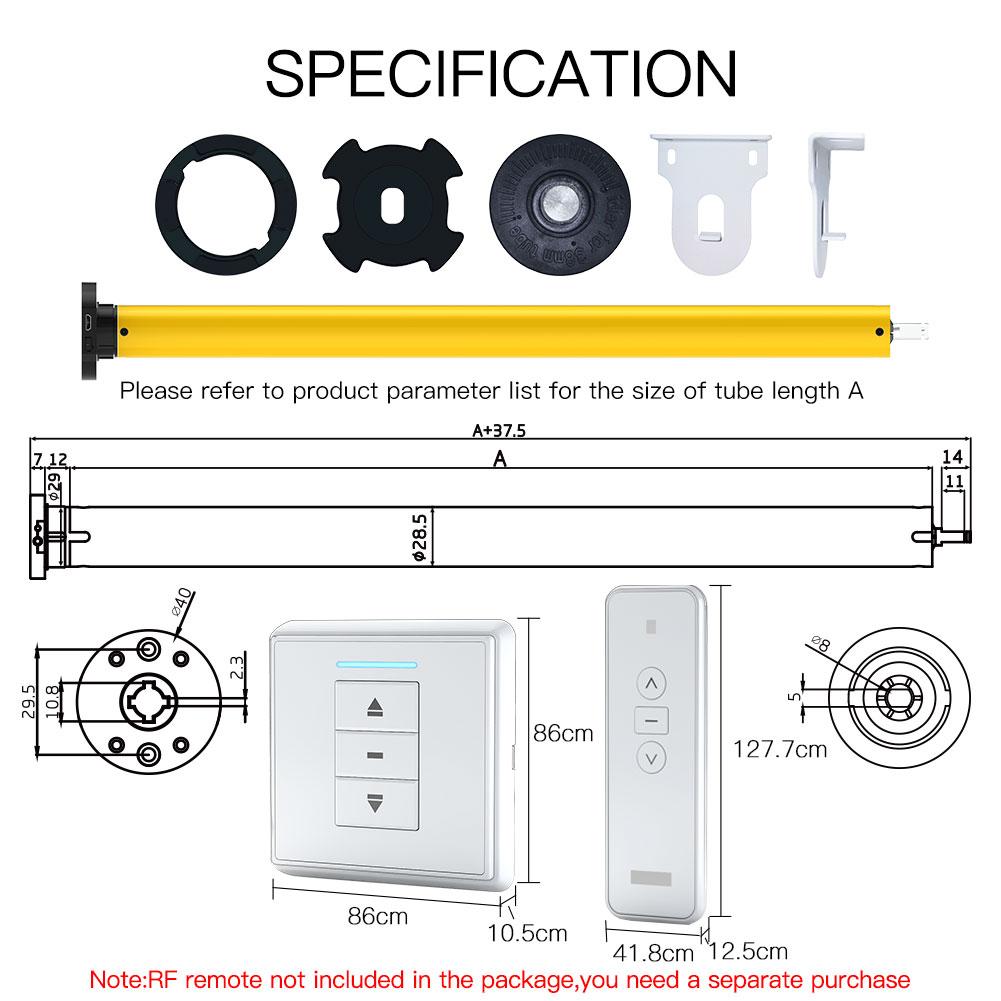

Parameter:

• Item Name: Tubular Roller Blinds Motor
• Item No.: AM25-/30-ES-EZ
• Motor Diameter: 25mm
• Driving Tube Diameter: 38mm
• Voltage: DC7.4V
• Rated Current: 900mA
• Rated Torque: 1 N.m
• Rated Speed: 30 rpm
• Smart Control App: MOES
• Voice Control: with Amazon Alexa Echo/ Google Home

• English Manual
• Russian Manual
