ZigBee Smart Thermostat Programmable Temperature Controller for Water Floor Heating

• Smart Tuya ZigBee Thermostat: Functional heating system with ZigBee protocol built in for intelligent control of water floor, electric heating and water/gas boiler heating system, which provides maximum and comprehensive comfort to your smart life for the home temperature.

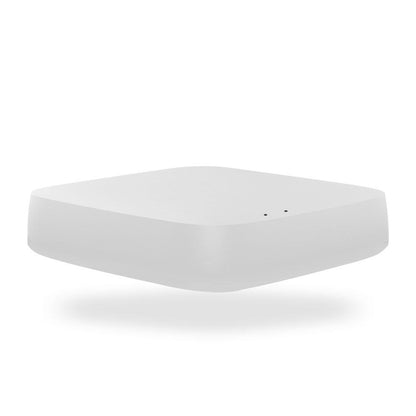

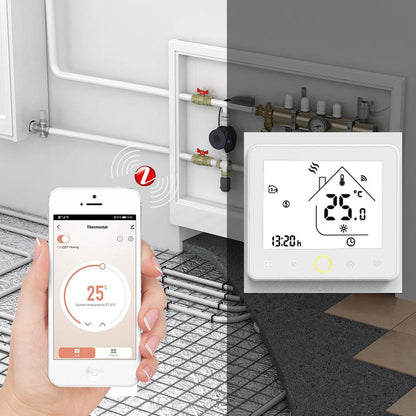

• Tuya ZigBee Wireless Gateway/Hub is required for collaboration: need a Tuya ZigBee hub to connect the thermostat that has proven to be a bridge and control centre for Smart Homes and plays an irreplaceable role for all ZigBee products. Proven to be a really good replacement for unstable Wi-Fi networks. Simply add the thermostat to the ZigBee hub after adding the hub to the MOES/Tuya app.
• Programmable Schedule with Weekly Programming Selection: Supports manual set up 5+1+1 weekly schedule with 4 periods for option, providing you with the maximum convenience for different situation and setting customized schedule for your house temperature in MOES and Tuya App.
• Voice and Remote Control for the Tuya ZigBee Wireless Gateway Connected: Supports App remote control via your smart phone, together with the hands-free voice control via Alexa and Google Assistant after successfully connecting your thermostat to MOES App on the basis of one Tuya ZigBee Wireless Gateway.
• Sensor selection with IN/AL/OU available: set high limit temperature ceiling with 45-70℃ and the lower limit of temperature with 1-5 ℃ adjustable in App to get more convenience for the device;device share to your family or friends for added convenience.

• Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ
• Current Load:

5A (Water heating/Water boiler/Gas boiler)

16A (Electric heating)

• Sensor: NTC
• Accuracy: ±0.5℃ or ±1℉
• Set Temp. Range: 5 -35
• Dispaly Temp. Range: 5 ~ 99
• Ambient Temp.: 0 ~ 45 ℃
• Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
• Storage Temp.: -5 ~ 45 ℃
• Timing Error: < 1%
• Shell Material: PC +ABS ( flame retardant)

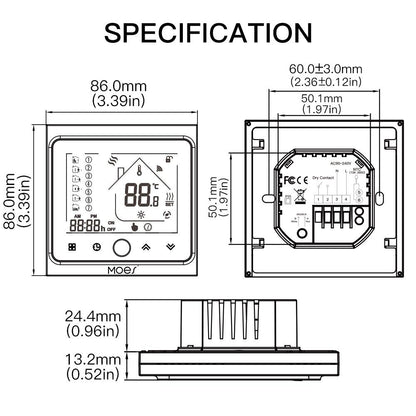

• Installation Box: 86*86mm Square or European 60mm Round Box
• Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
• Protection Class: IP20
• Buttons: Capacitive Touch Buttons

Package Listing:

• Thermostat*1
• Screws*2
• User Guide*1
• QC Passed*1
• Floor Sensor (2.5m) *1(optional)
