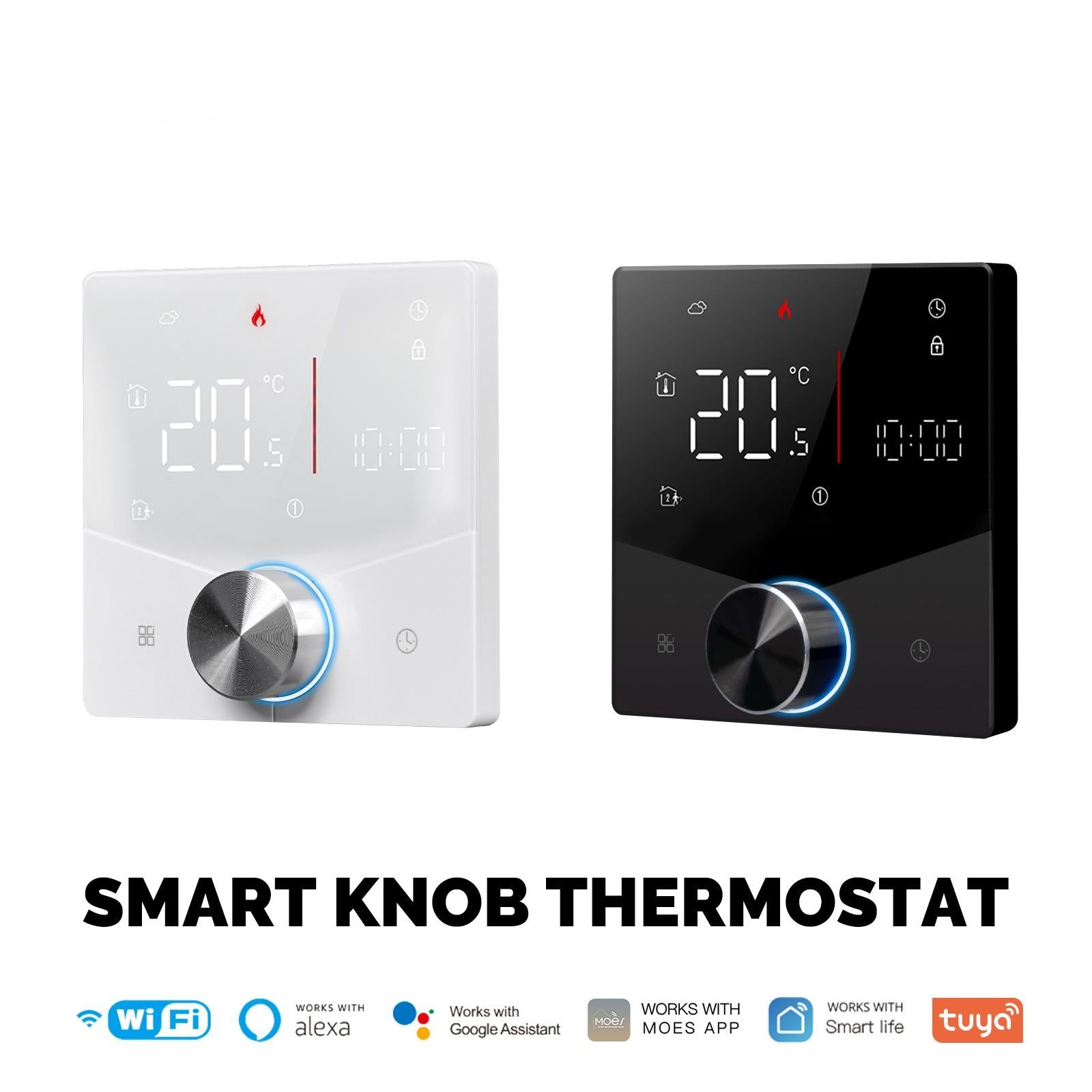

WiFi Smart Thermostat Temperature Controller for Water/ Electric /Gas /Boiler Floor Heating

This WiFi Thermostat provides maximum convenience for your smart home temperature life. With these thermostats, you can easily monitor indoor temperature, humidity, outdoor UV, and other weather stations all in one place. Our focus is on creating a simple, humanized, and pleasant feeling for your home. Our Digital Thermostat features a stunning new touch design with a 2.5D arc effect on the edge of the lens, ensuring the ultimate visual enjoyment and a soft touch. The color LED screen display adds to its beauty like picturesque scenery. It also has an ultra-thin embedded panel that perfectly fits various wall surfaces. Whether it's the standard 86mm square cassette or the 60mm European cassette, we have you covered for all installation environments. You can count on the ±0.5℃ accuracy of this thermostat to keep the temperature level exactly as you set it. Say goodbye to uncomfortable fluctuations in room temperature.

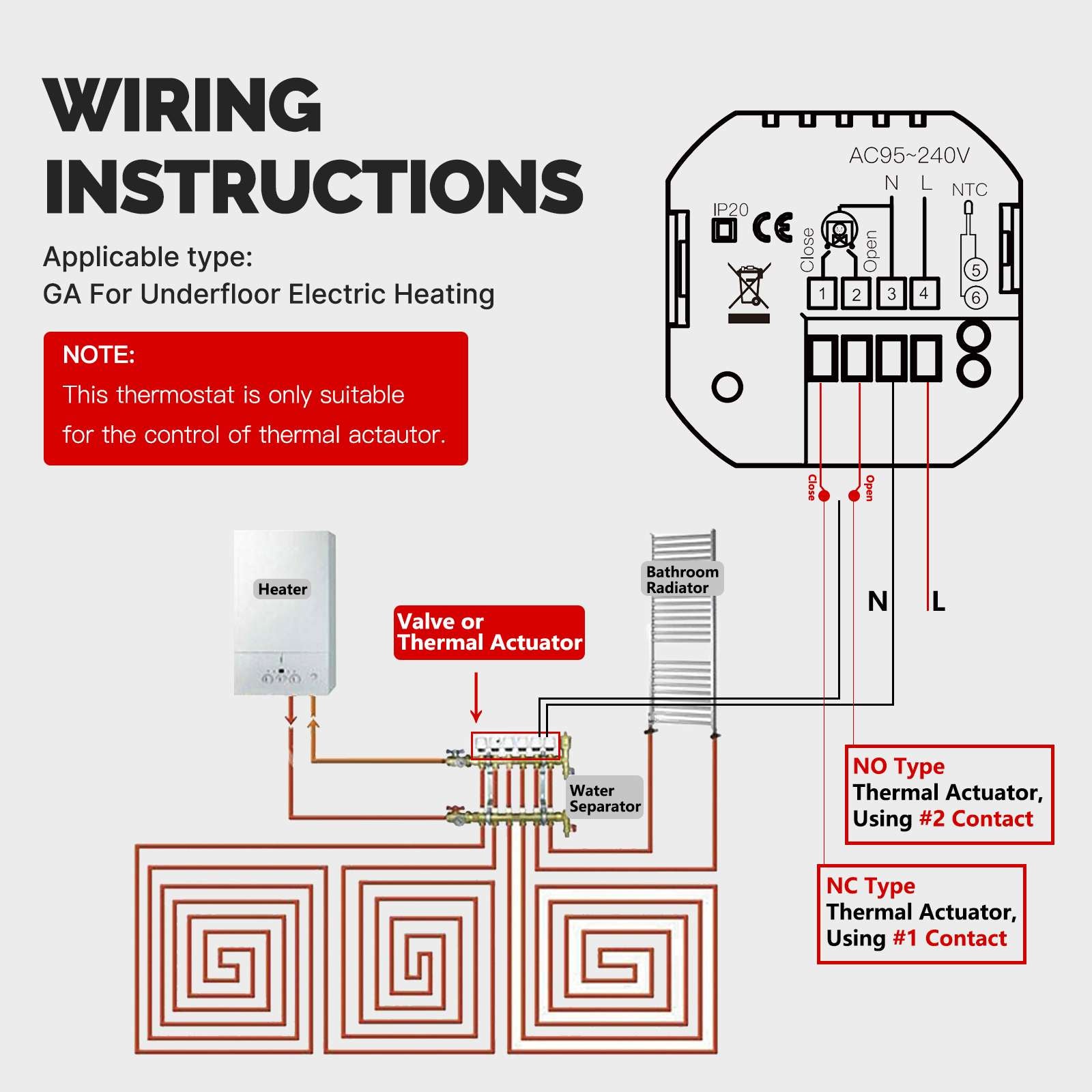

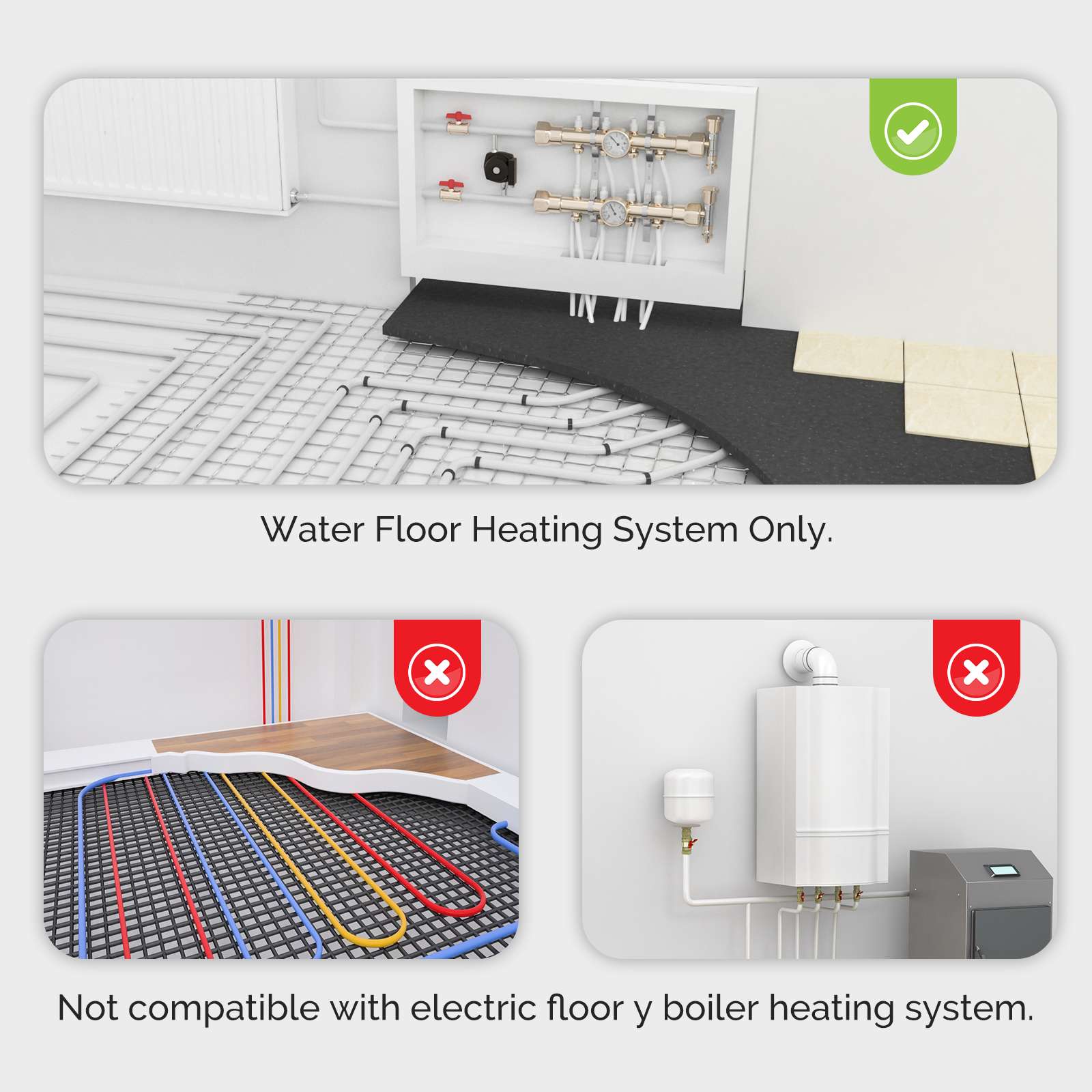

• Functional Heating System: Intelligent water floor, electric heating, water and gas boiler heating systems are controlled by Tuya Wi-Fi protocol.
• Smart Home Compatible: Works with Alexa Google Home for an easier way to free your hands;
• Eco Mode：You can set the energy-saving temperature by yourself. When the energy-saving mode is turned on, the thermostat can maintain the temperature at the energy-saving temperature to save energy for you.

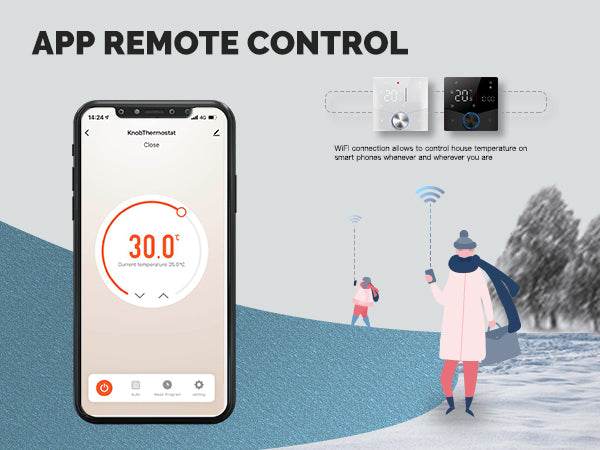

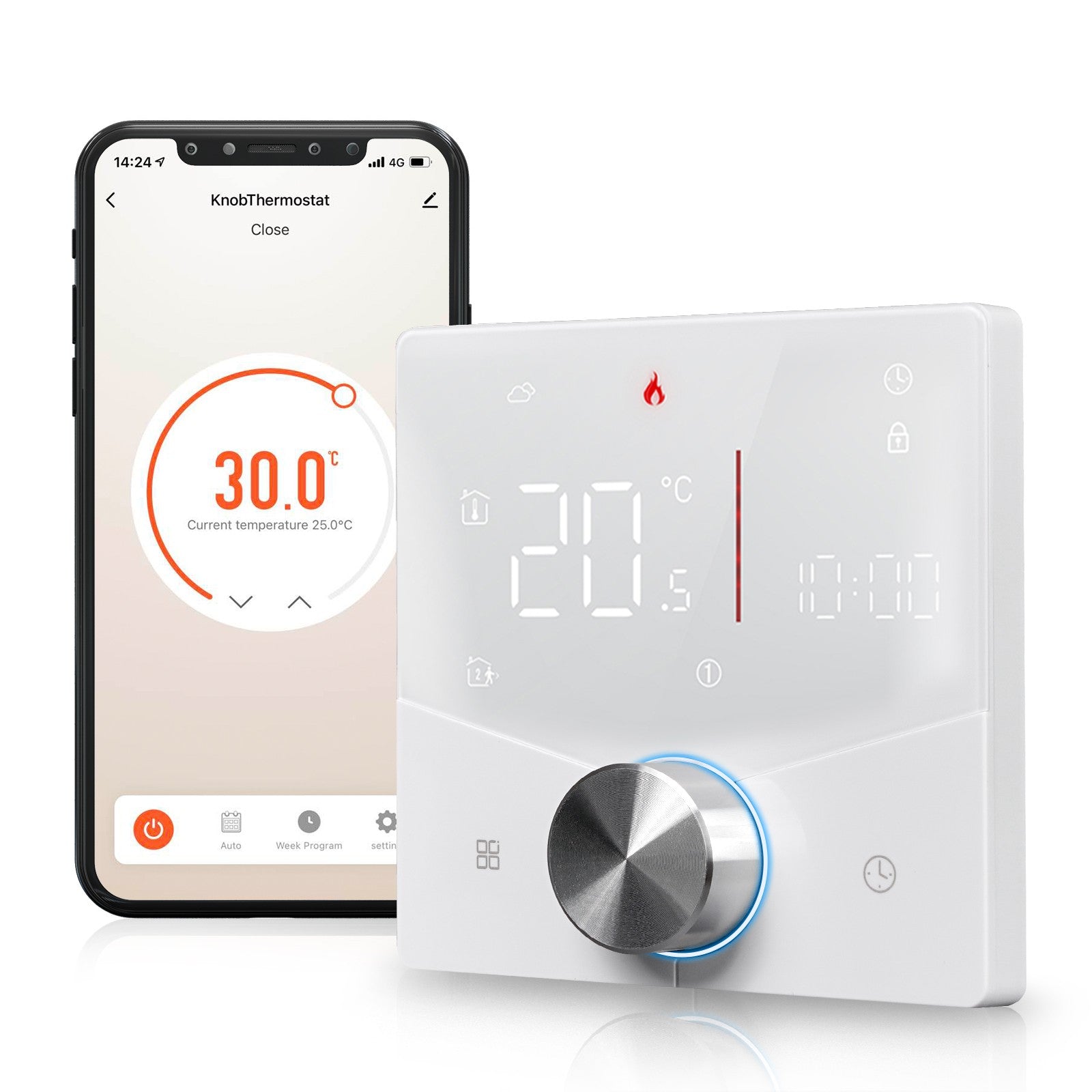

• Mobile APP Remote Control: no hub required, easy operation via smartphone anytime, anywhere.

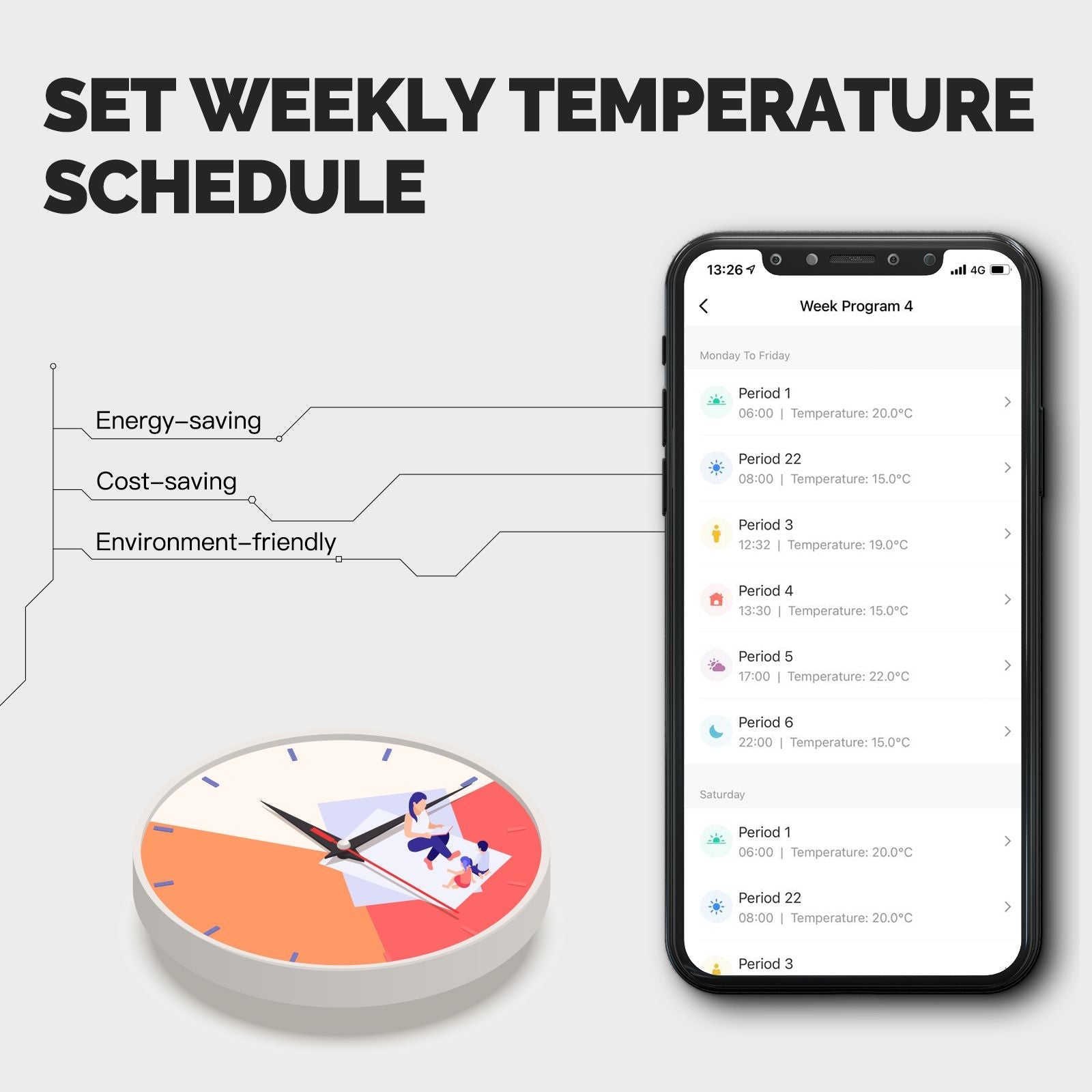

• 5+1+1 Six-period Programmable: supports fully automatic program or manual setting of 5+1+1 day-week plan with 6 stages per day
• Note: The current load of hot water and gas boilers is 5A, and the load of electric water heaters is 16A.
• Attention: GA/GC doesn't include Floor sensor.

• Power Supply: 95 ~240 VAC, 50~60Hz

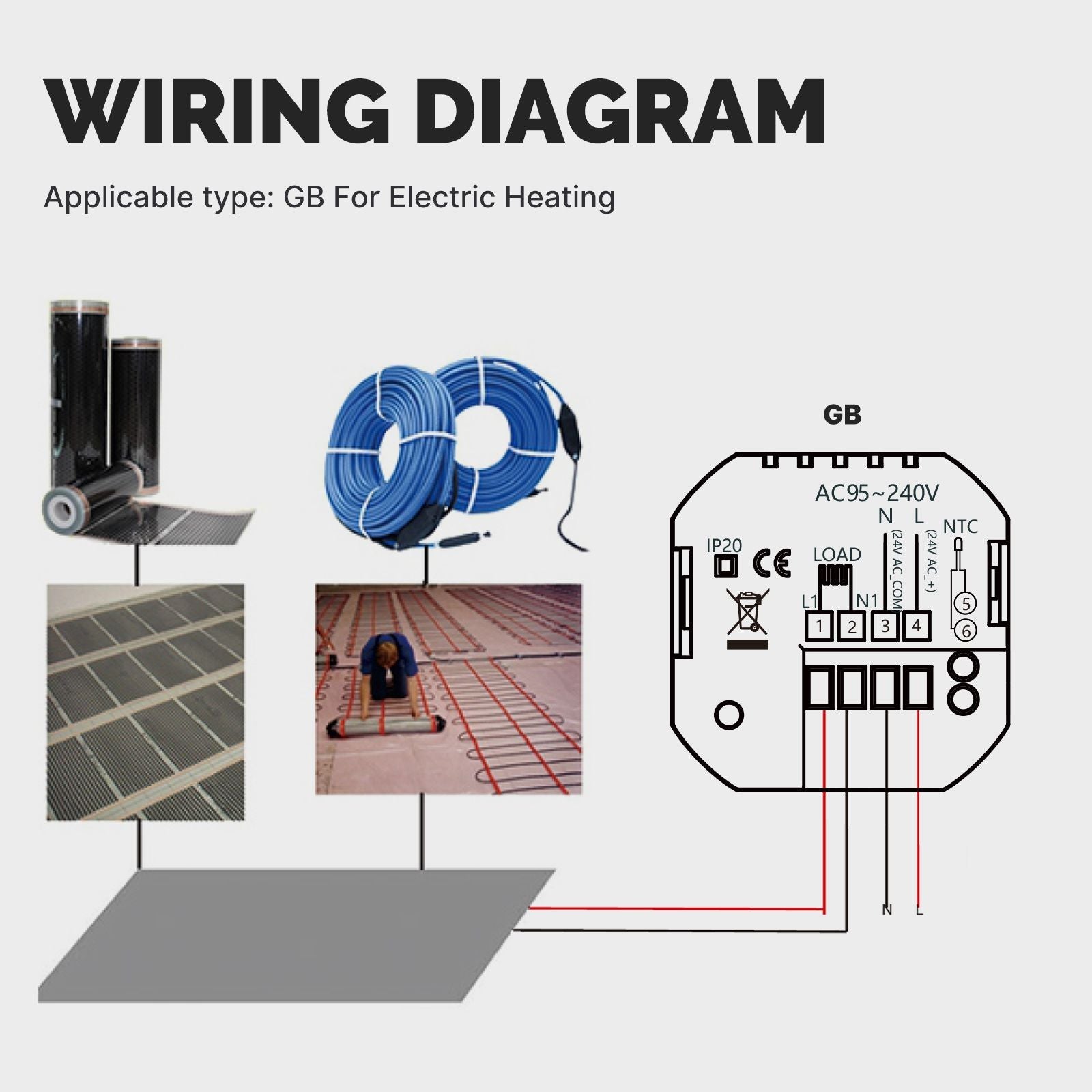

• Current Load: 5A (water heating, gas boiler), 16A (electric heating)
• Sensor: NTC3950, 10K
• Accuracy: ±1°C
• Set Temp. Range: 5-35°C
• Room Temp. Range: 5-99°C
• Display Temp. Range: 5 ~ 99
• Ambient Temp.: 0~ 45°C
• Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
• Storage Temp.:-10~ 45°C
• Power Consumption: <1. 5W
• Timing Error: < 1%
• Shell Material: PC +ABS ( Fireproof)

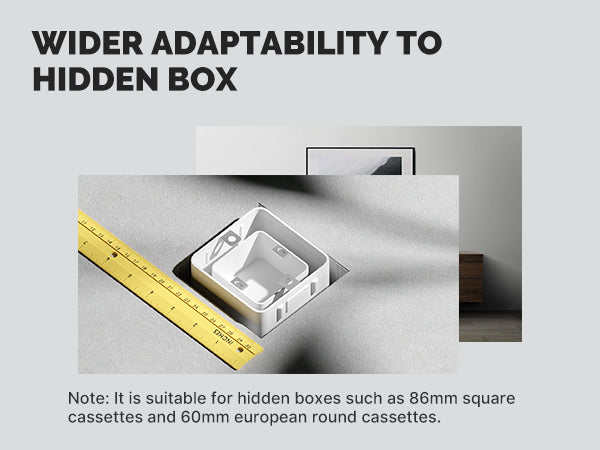

• Installation Box: 86 * 86mm Square or European 60mm Round Box
• Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
• Protection Class: IP20

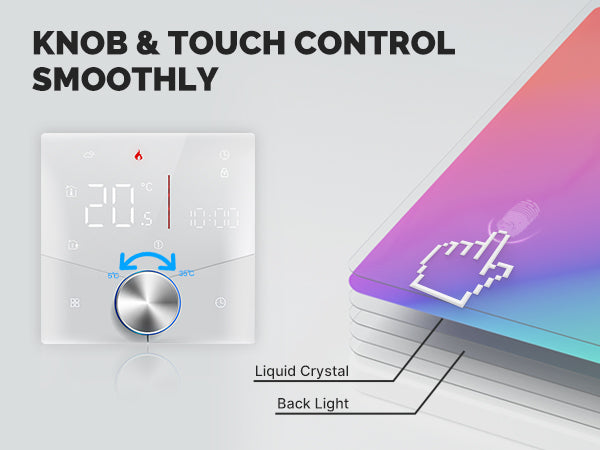

• Buttons: Capacitive Touch Button

Package Content

GA/GC：

• Smart knob Thermostat *1
• Manual *1

GB：

• Smart knob thermostat *1
• External temperature sensor cable *1
• Manual *1
