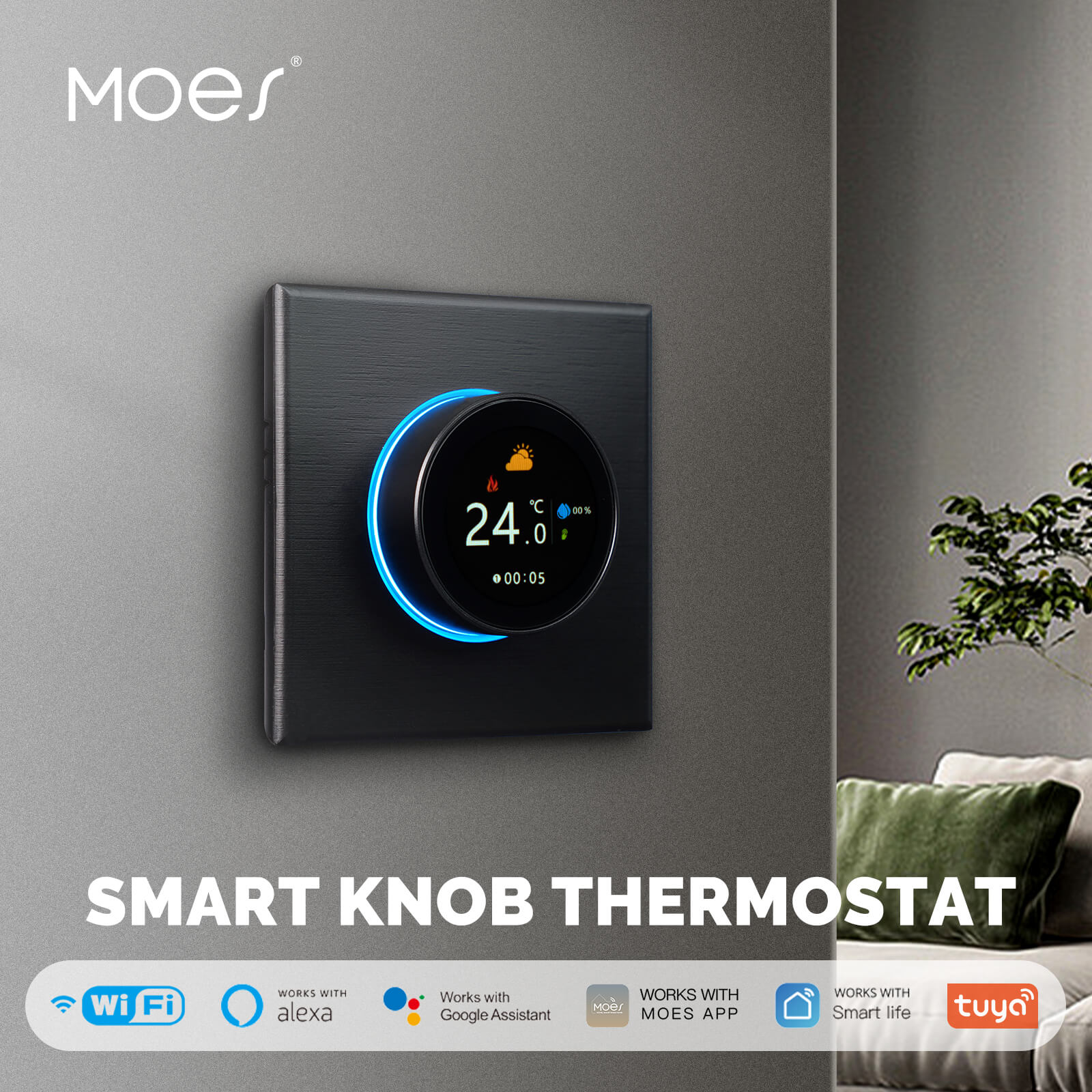

MOES WiFi Smart Home Heating Knob Thermostat Temperature Controller For Water Gas Boiler Electric Heating

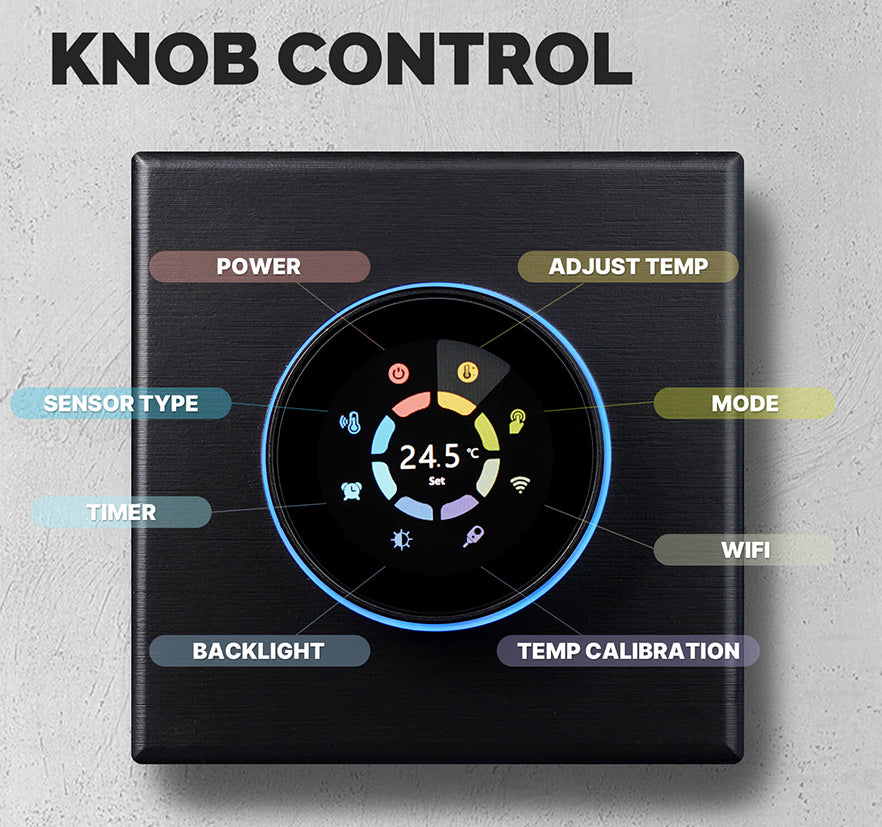

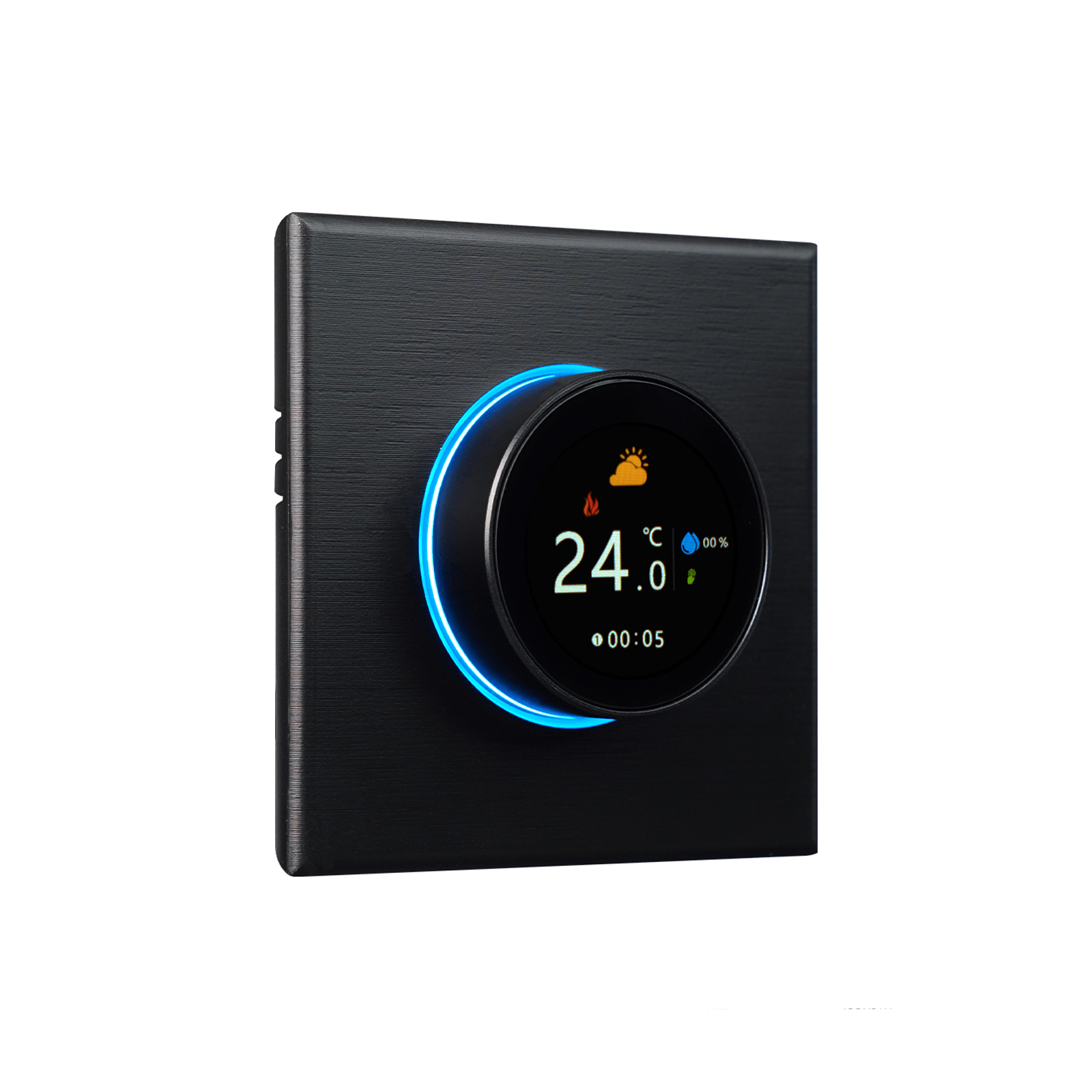

• 【KNOB CONTROL】Complete functions displayed on the knob and can be controlled by rotating the knob for your convenience.
• 【TEMPERATURE CALIBRATION】In case of the temperature variation between the floor and the air, you can set the calibration value by App, to make sure the final temperature reaches your ideal value.

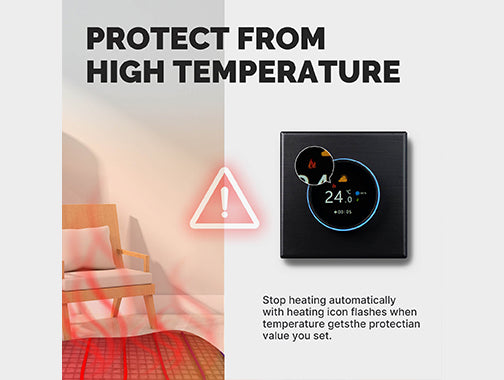

• 【PROTECT FROM HIGH TEMPERATURE】Automatically stop heating to keep you safe from danger may triggered by high temperature.

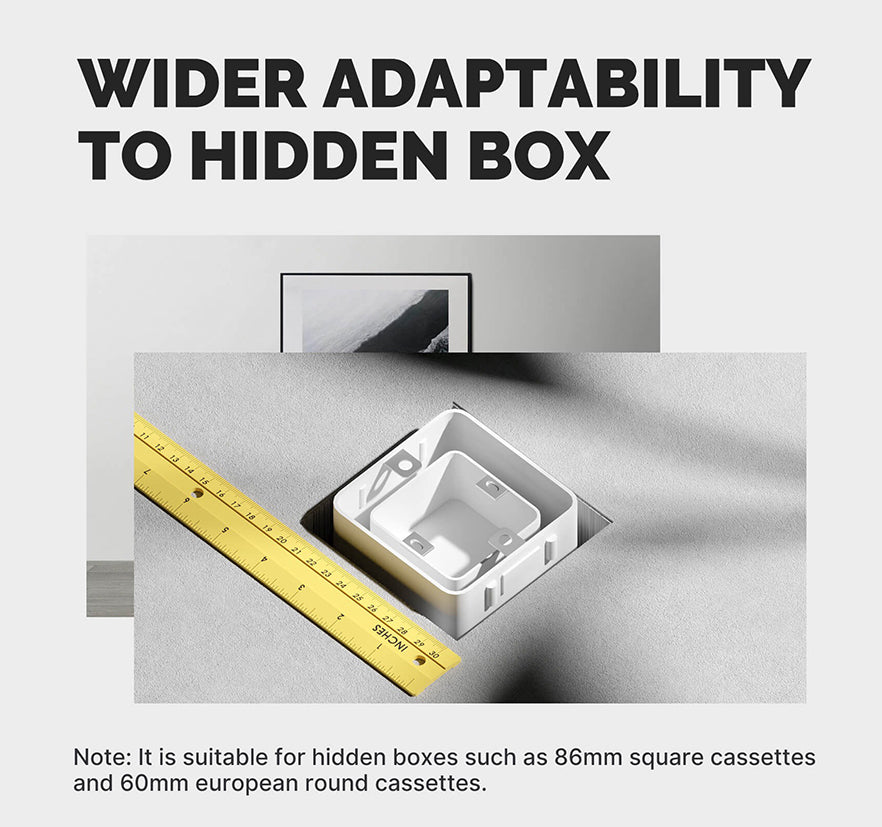

• 【WIDER ADAPTABILITY TO HIDDEN BOX】The compact size makes it easy to install in the different sizes of hidden box such as 86mm square cassettes and 60mm european round cassettes.
• 【SHARE DEVICE】Device share to your family members to control the samrt thermostat together.
• 【SMART THERMOSTAT】A highly smart thermostat intergrates various functions and it supports such a smart life that set your hands free and simplify your lifestyle.

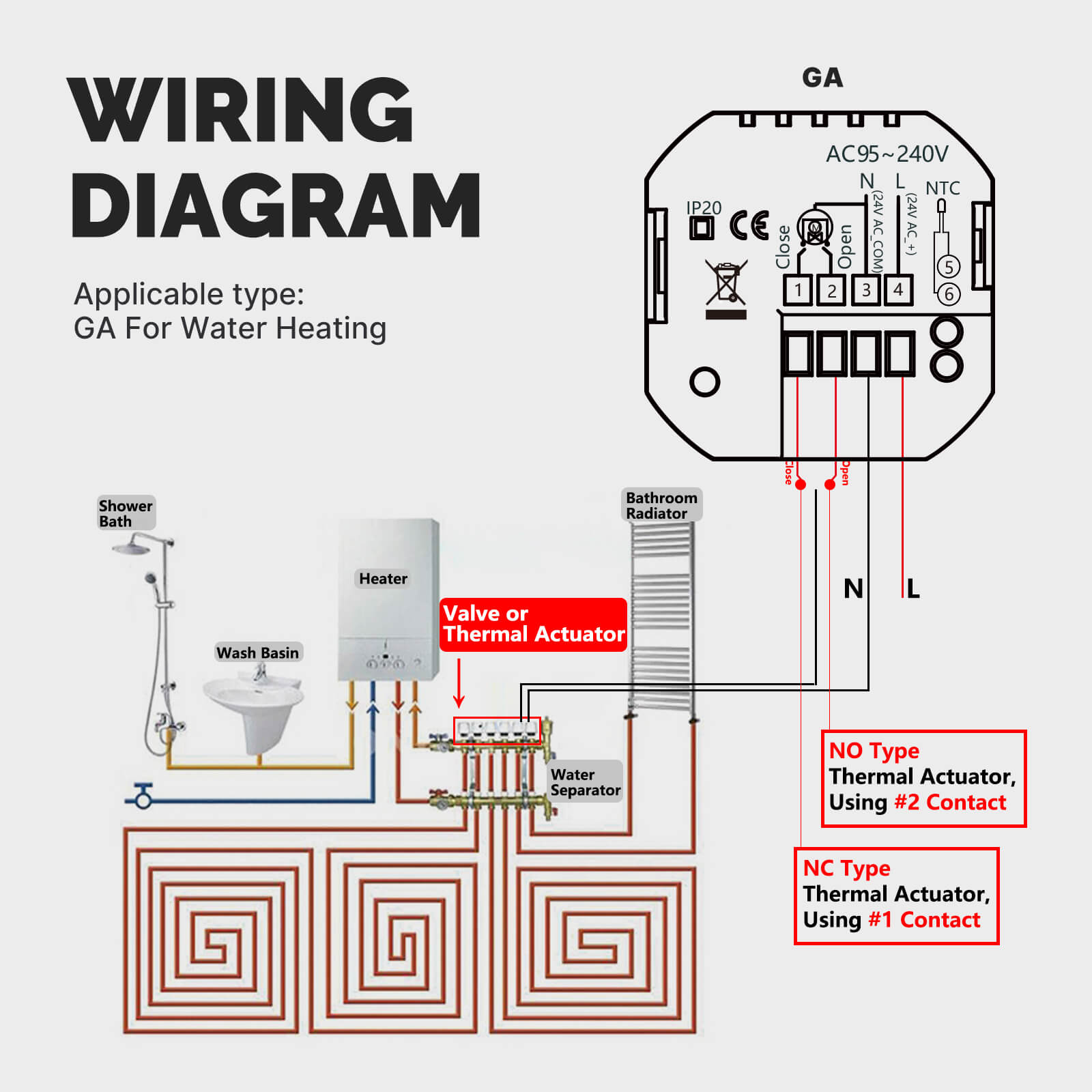

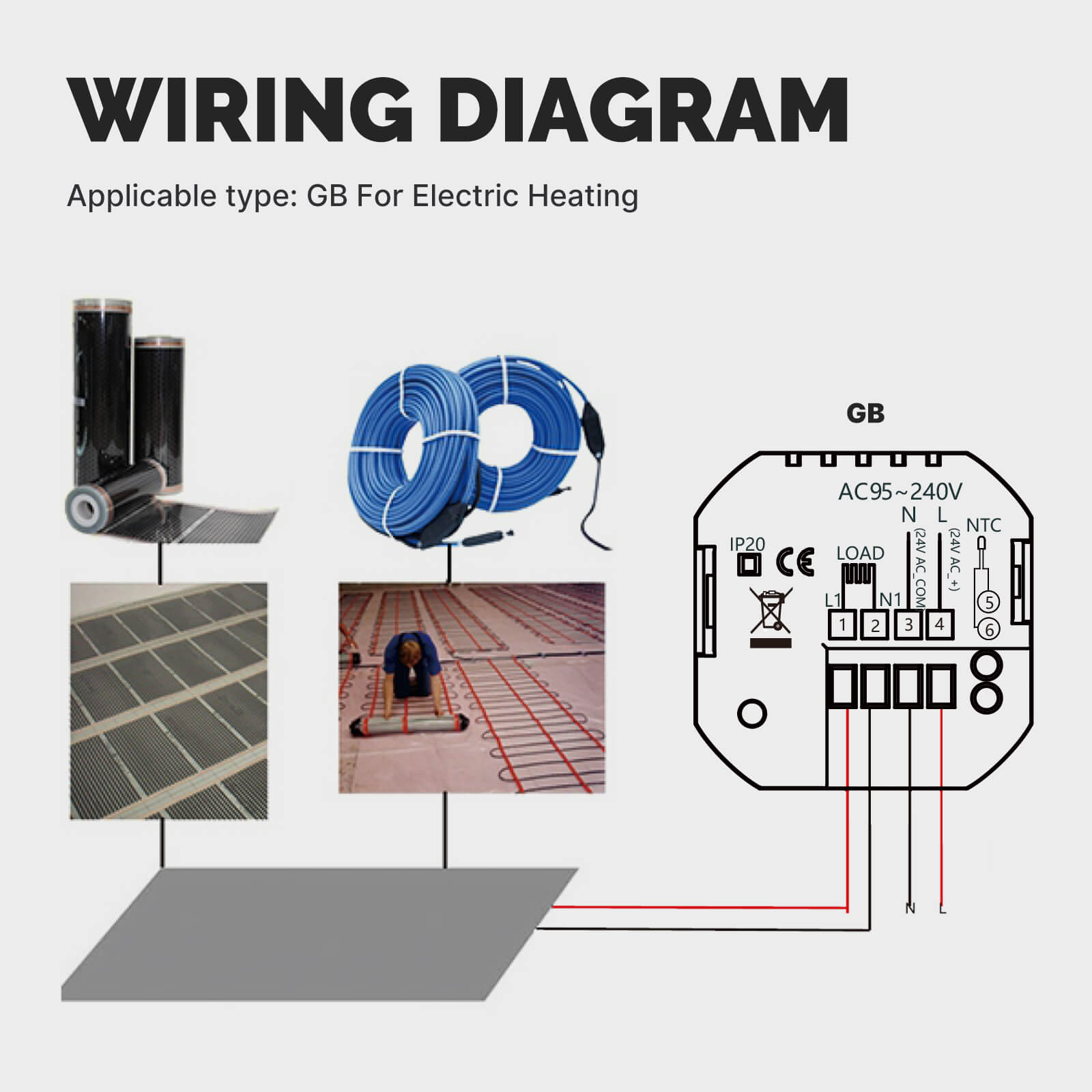

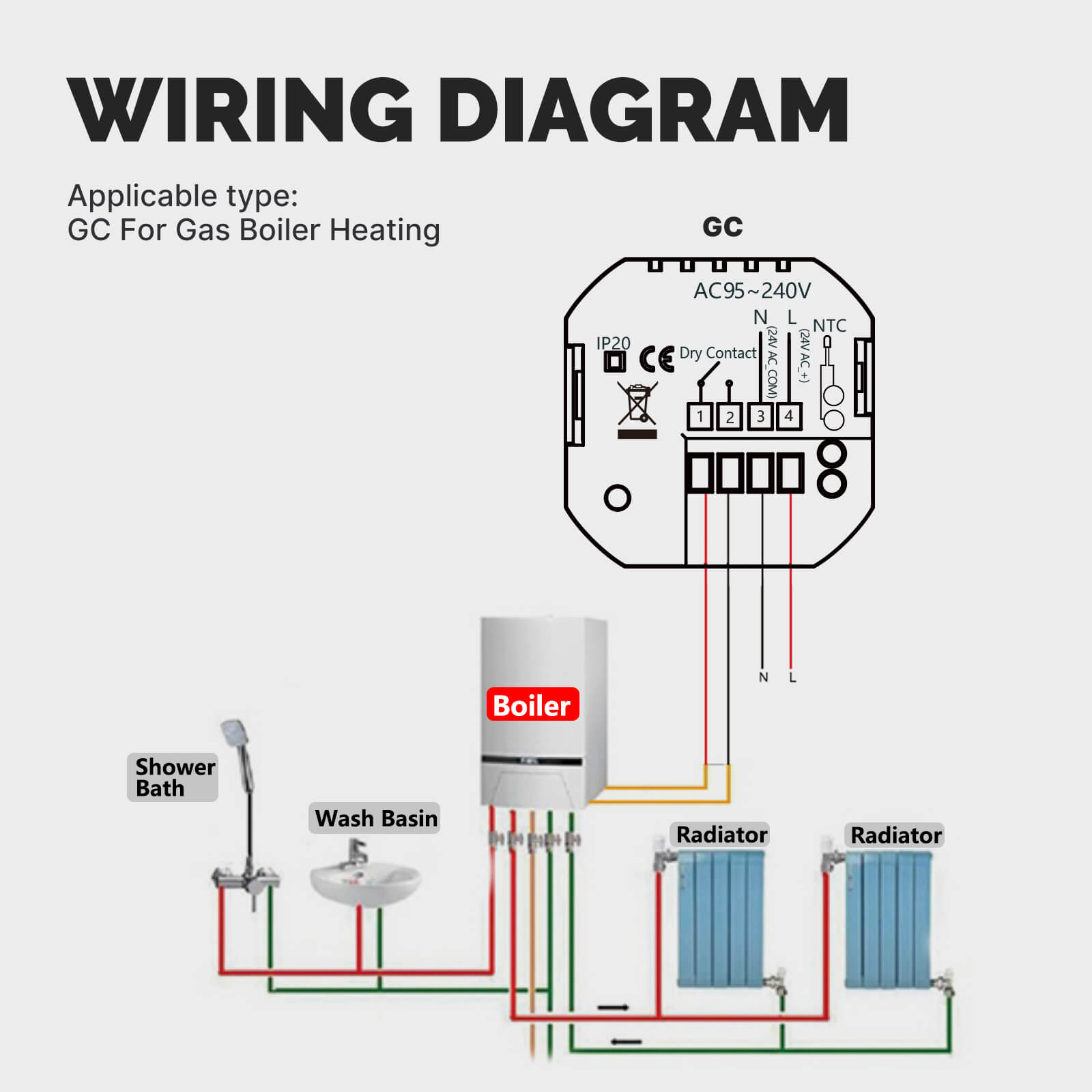

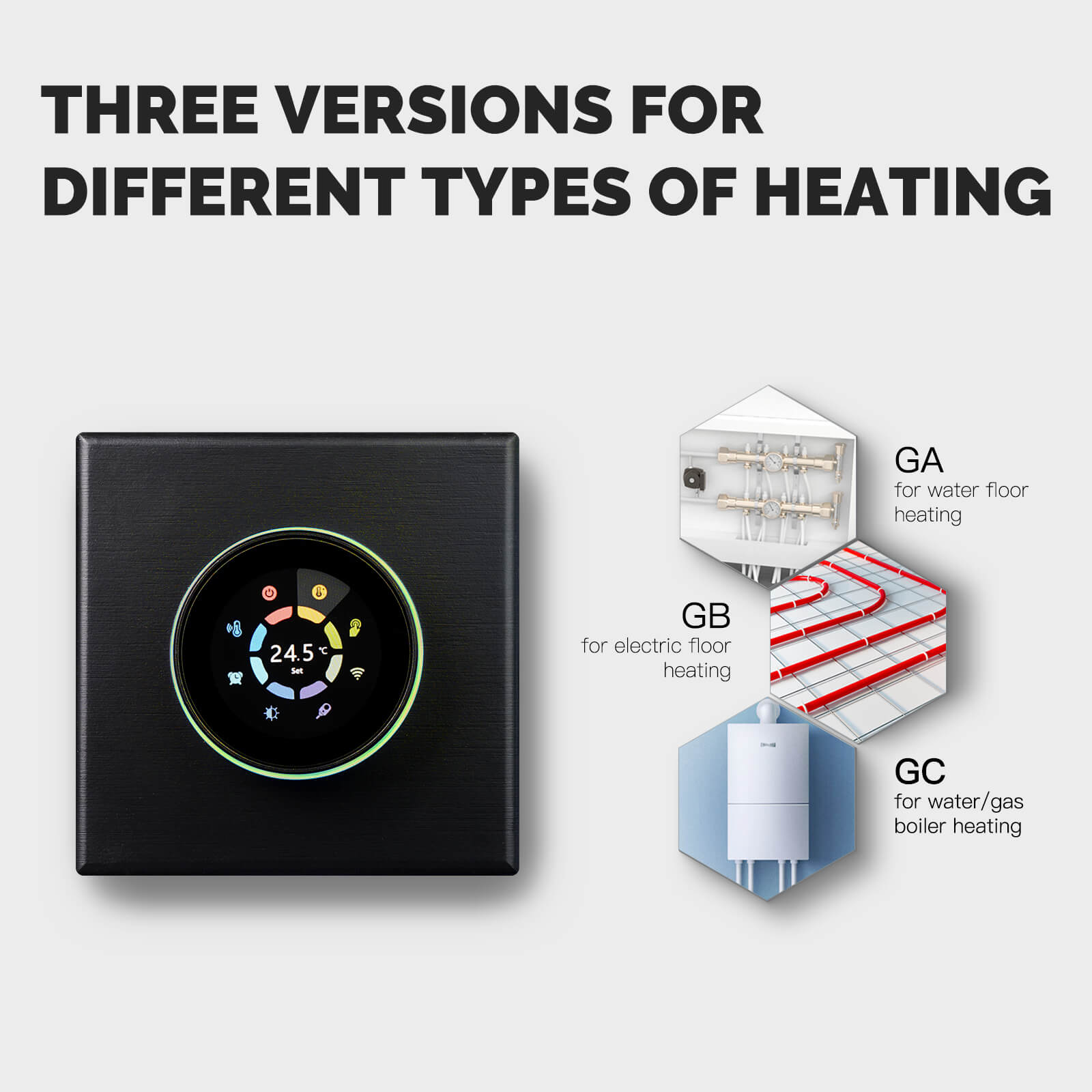

• 【WIRING DIAGRAM】Check your thermostat version is GA/GB/GC and choose the correct wiring method.

TECHNICAL SPECIFICATIONS

• Power Supply: 95 ~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
• Current Load: 5A (water heating, gas boiler), 16A (electric heating)
• Set Temp. Range: 5-45°C
• Room Temp. Range: 5-99°C
• Display Temp. Range: 5 ~ 99°C
• Ambient Temp.: 0~ 45°C
• Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
• Storage Temp.: 0~ 45°C
• Shell Material: PC +ABS ( Fireproof)

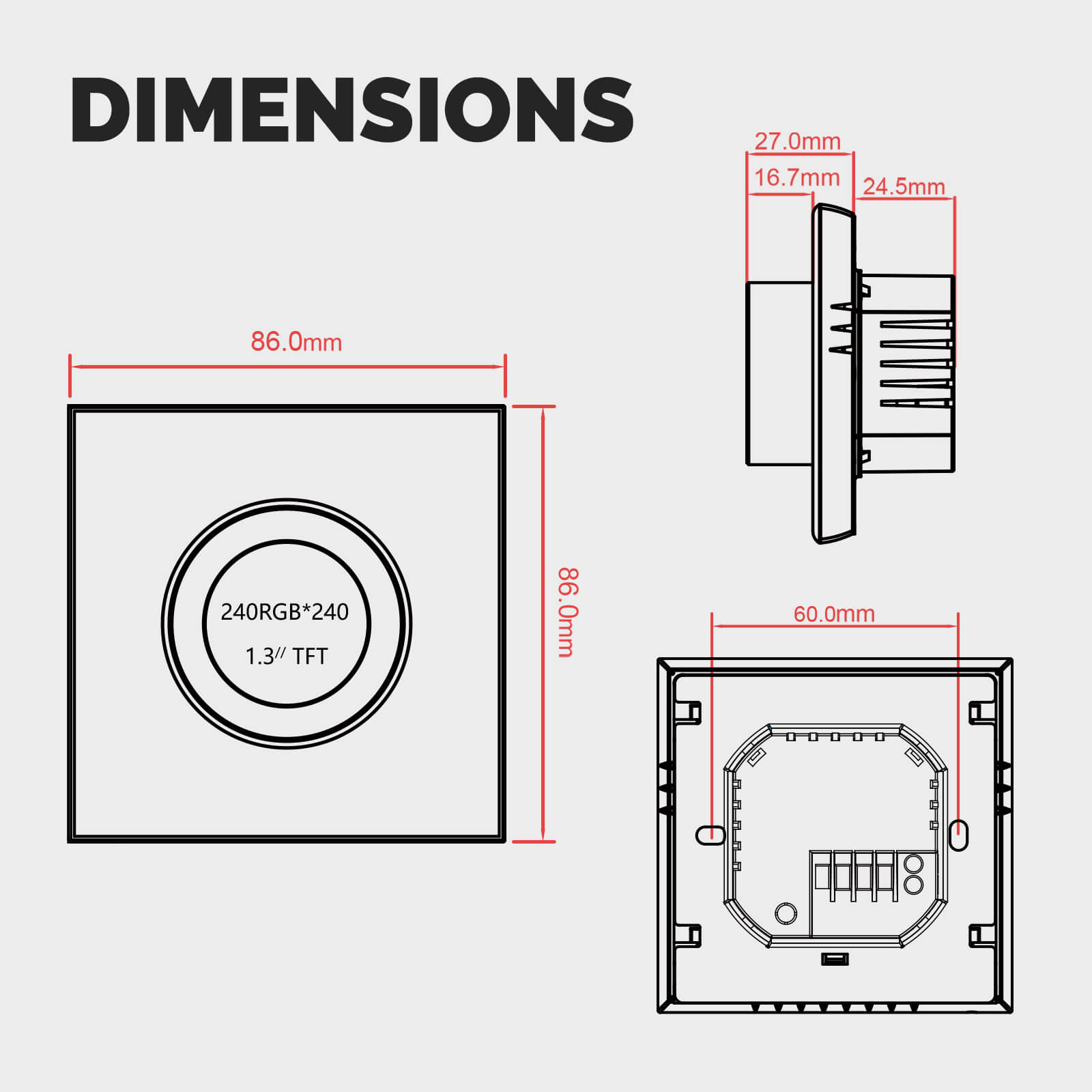

• Installation Box: 86 * 86mm Square or European 60mm Round Box
• Wire Terminals: Wire 2 x 1.5SQMM or 1 x 2.5SQMM
• Protection Class: IP20
• Buttons: Knob

PACKING LISTING

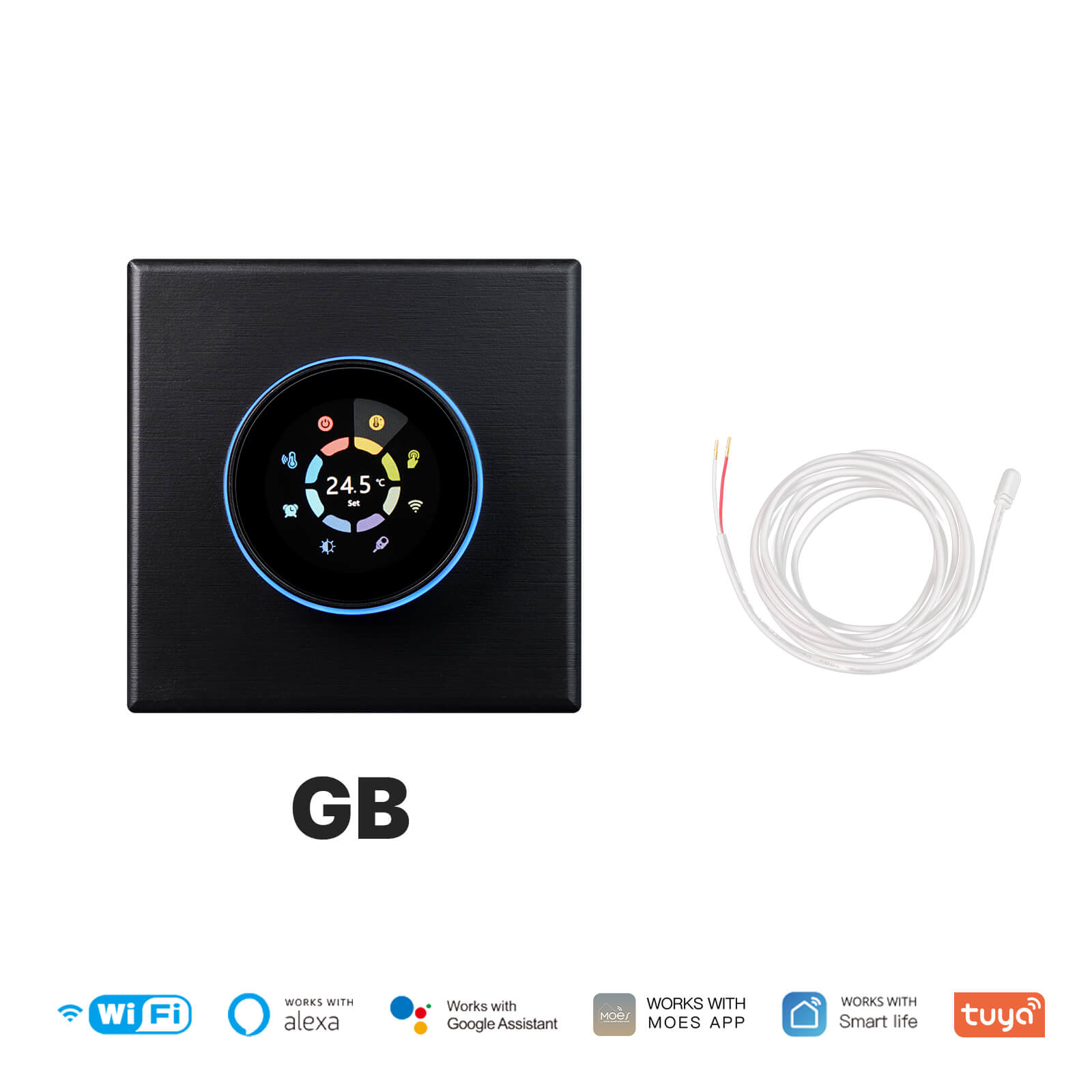

• Smart knob thermostat *1
• External temperature sensor cable *1
• Manual *1
