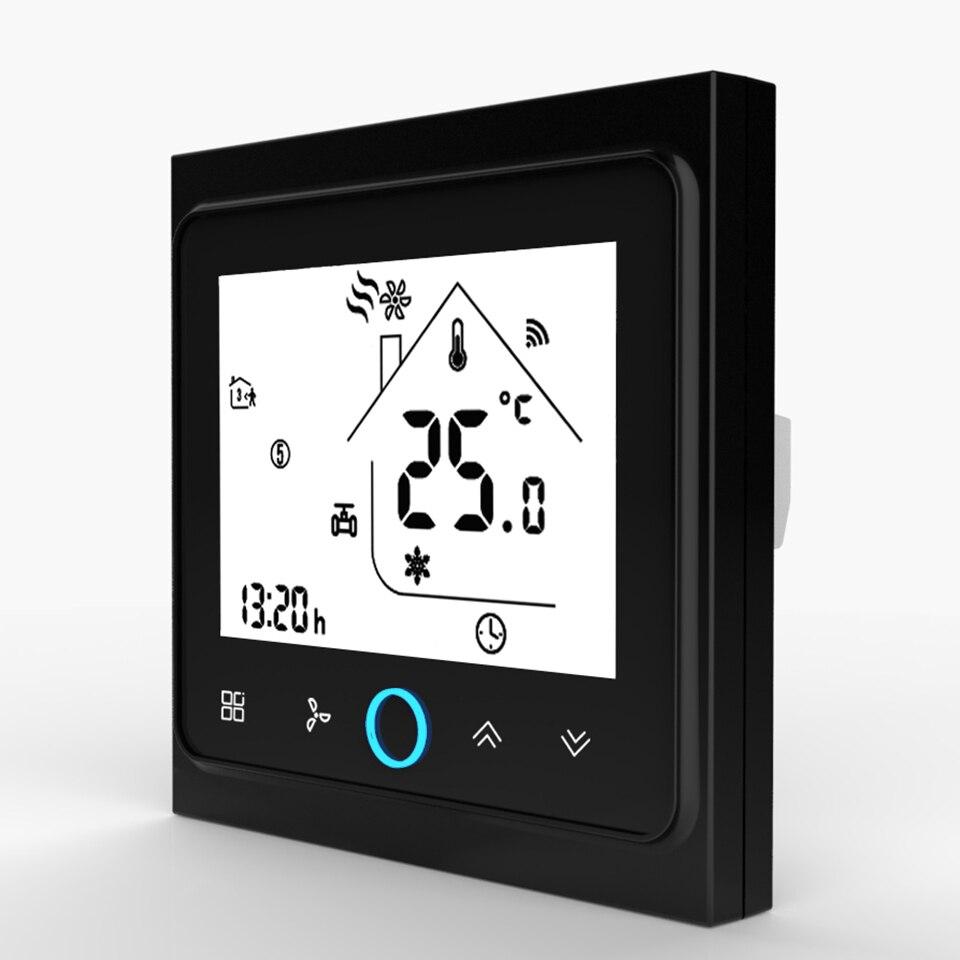

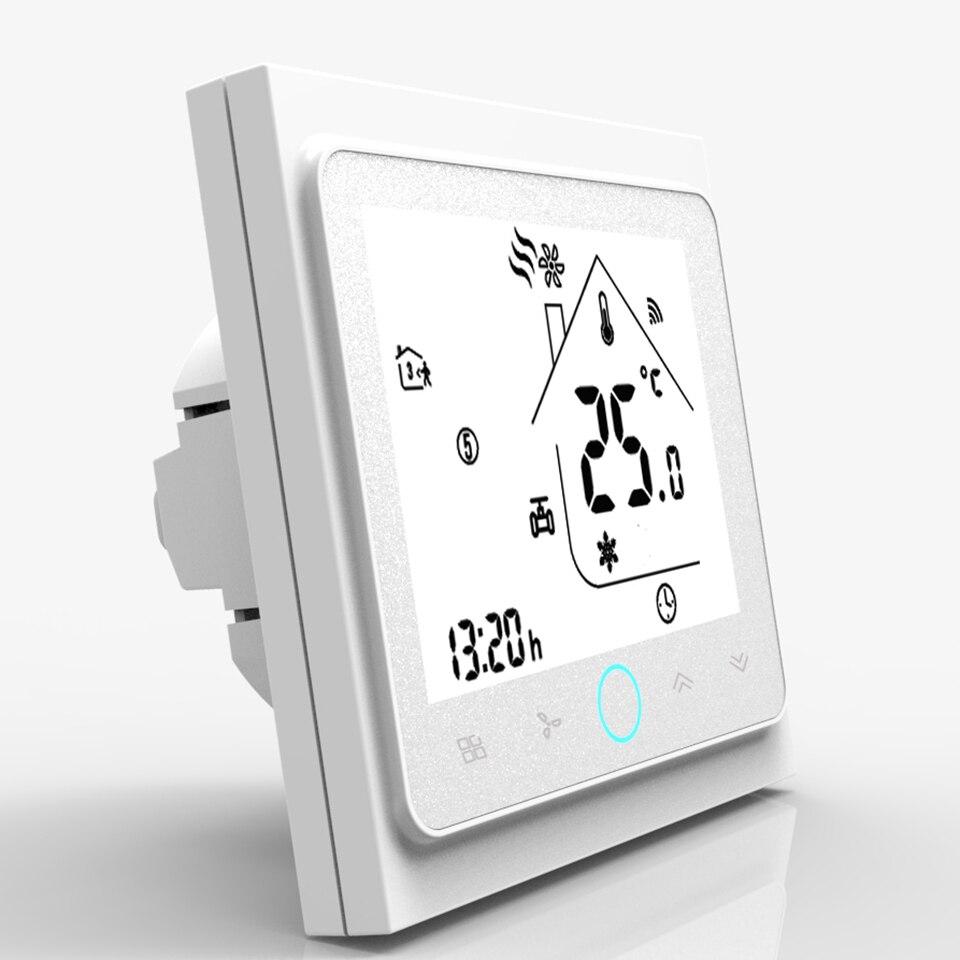

WiFi Smart Central Air Conditioner Thermostat Temperature Controller 2/4 Pipe 3 Speed Fan Coil Unit

On Appearance
1. 86mm hidden box and european 60mm round box is suitable.
2. White, black or mix-color housing creates your colorful life.
3. White backlight protect your eyes
4. Touch buttons to make simple operation.

On Functionality

1. Powerful functions are available such as Modbus/WIFI etc,.

2. 0.5°C Accuracy keeps temperature within the level you set.

3. Clock memory when power is off.

4. 5+2 six periods programmable maximize comfort and economy.

5. Create thermostat group to centrally control.

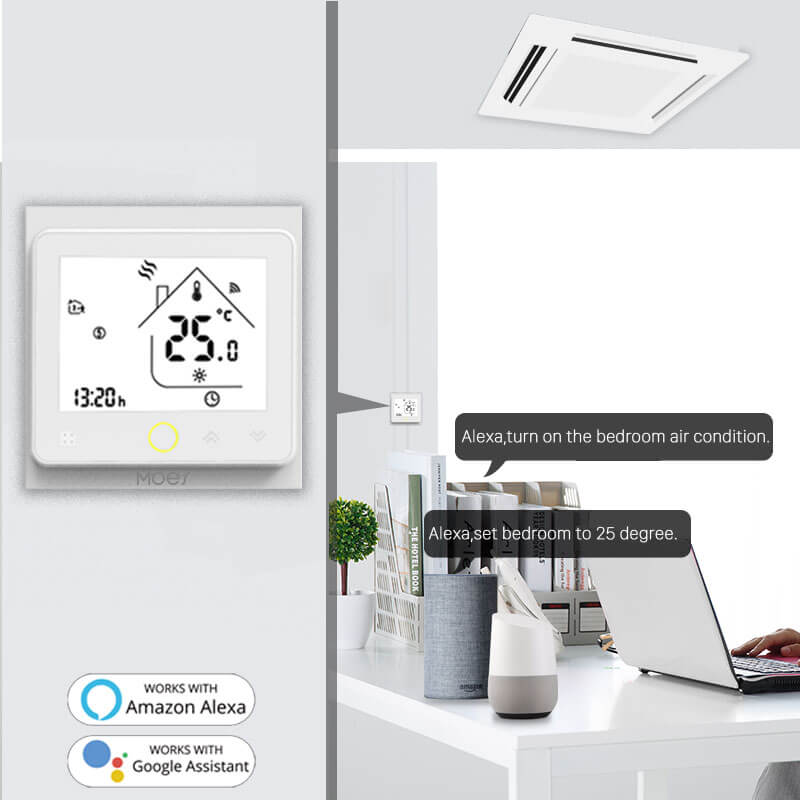

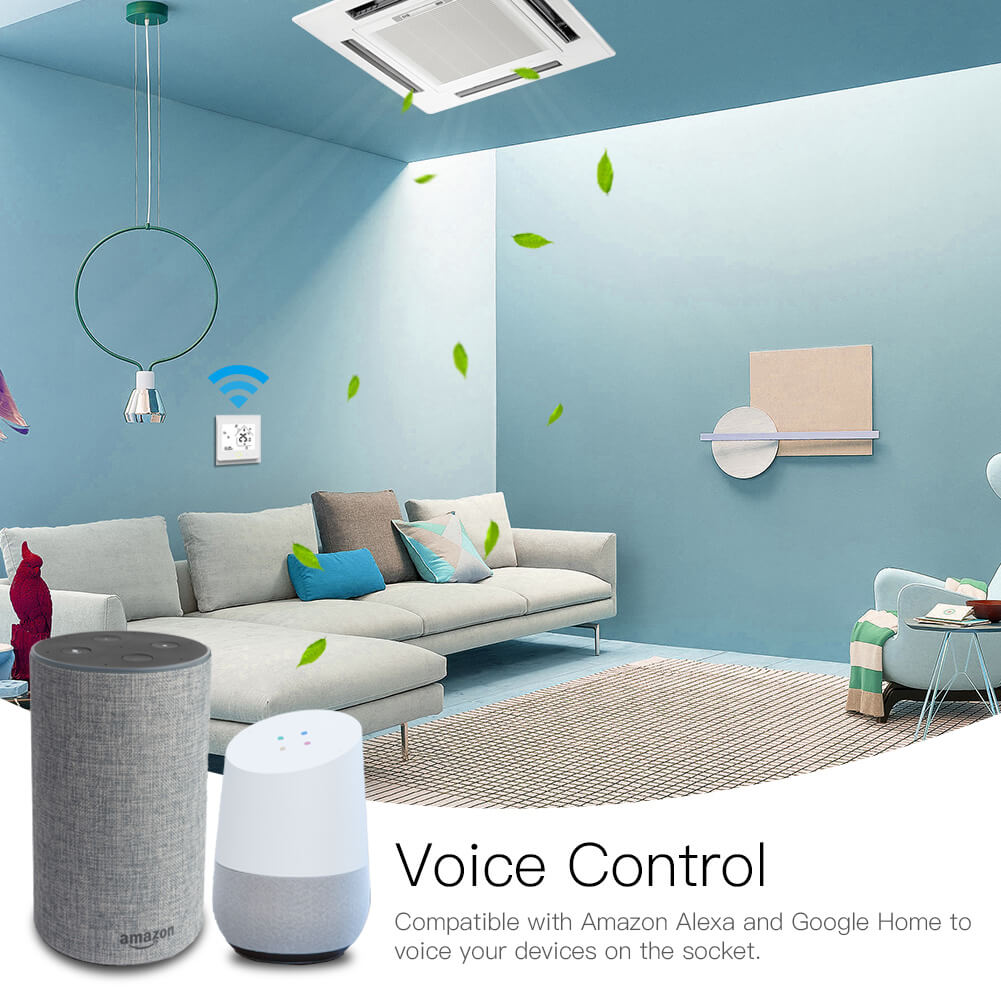

6. Integrated with Amazon Echo, Google Home, Tmall Genie, IFTTT7. Support Device Sharing to your family or friends.
8 All setting languages synchronize your time zone, address and language.

9. No limit to add thermostats in App.

10. Support Smart Scene.

NOTE:

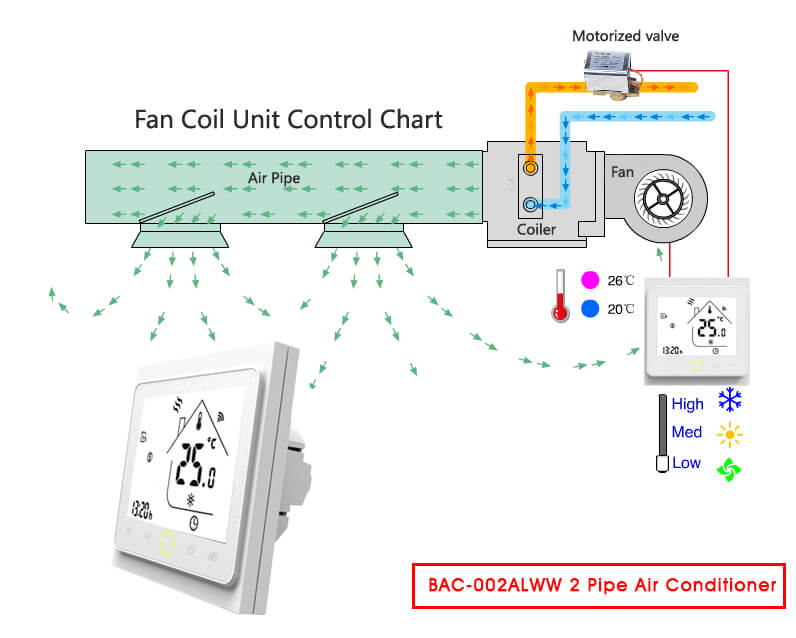

BAC-002ALW used for 2 Pipe 3 Speed Central Air conditioner;

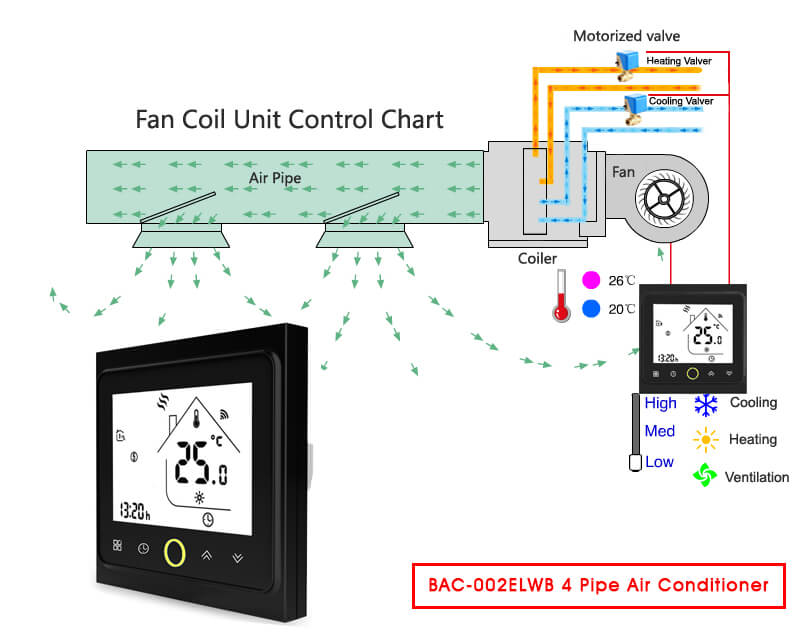

BAC-002ELW used for 4 Pipe 3 Speed Central Air conditioner.

• Power Supply: 95-220 V AC/DC, 50 ~ 60HZ
• Fan Relay Amps Resistance: 5A;Inductive: 3A
• Valve Relay Amps Resistance: 3A;Inductive: 1A
• Sensor: NTC3950，10K
• Accuracy: +0.5 ℃
• Set Temp. Range: 5 -35 ℃
• Dispaly Temp. Range: 5 ~ 99 ℃
• Ambient Temp.: 0 ~ 45℃
• Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
• Storage Temp.: -5 ~ 45 ℃
• Power Consumption: <1.5W
• Timing Error: < 1%
• Shell Material: PC +ABS ( Fireproof)

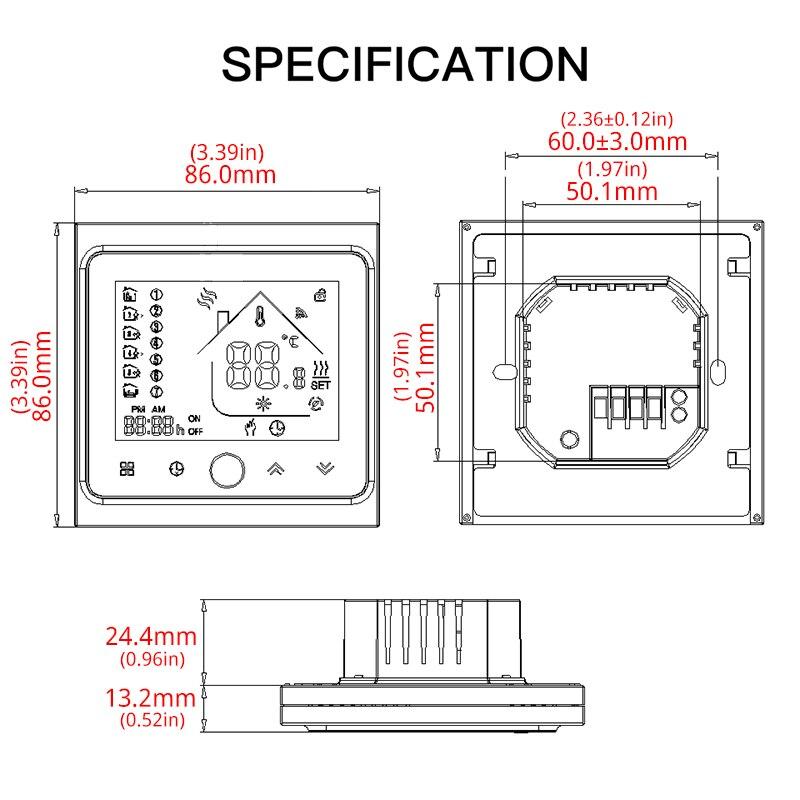

• Installation Box: 86* 86mm Square or European 60mm Round Box
• Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
• Protection Class: IP2
• Buttons: Capacitive Touch Buttons
