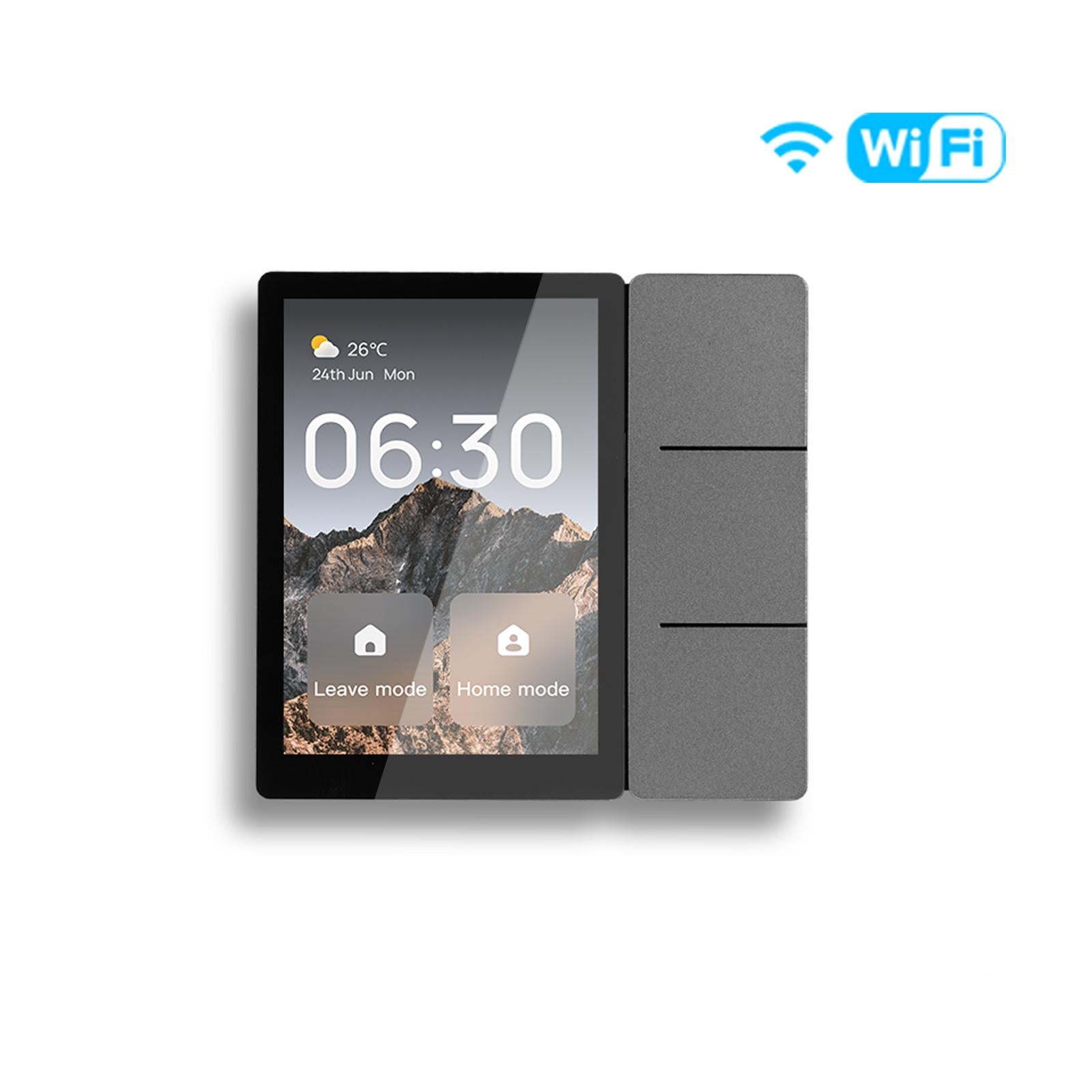

Tuya WiFi 3.5-inch Smart Center Touch Control Panel 3 Relays Physical Buttons Ble Sigmesh Hub Built-in

Tuya WiFi 3.5-inch Smart Center Touch Control Panel 3 Relays Physical Buttons Ble Sigmesh Hub Built-in

SKU: CCP-S05-EU-GY-MS

$159.99 USD
$159.99 USD $179.99 USD
Save 11% Sold out
DISCOUNT CODE

MSHS25

$25 OFF

Over $100

Description

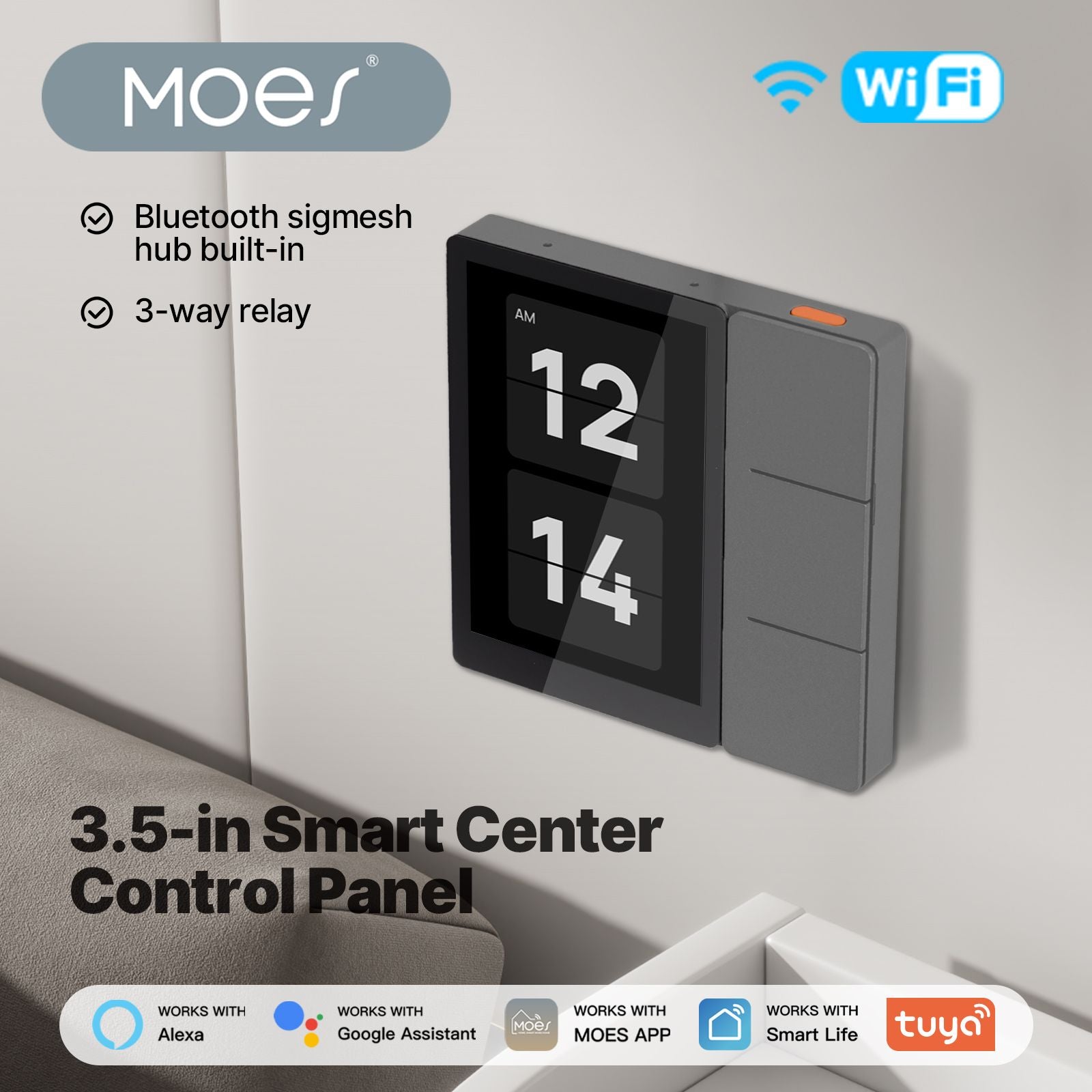

Tuya WiFi 3.5-in Smart Center Control Panel is your ultimate home automation hub — combining powerful device control, security monitoring, and Bluetooth gateway capabilities in one sleek touchscreen panel.

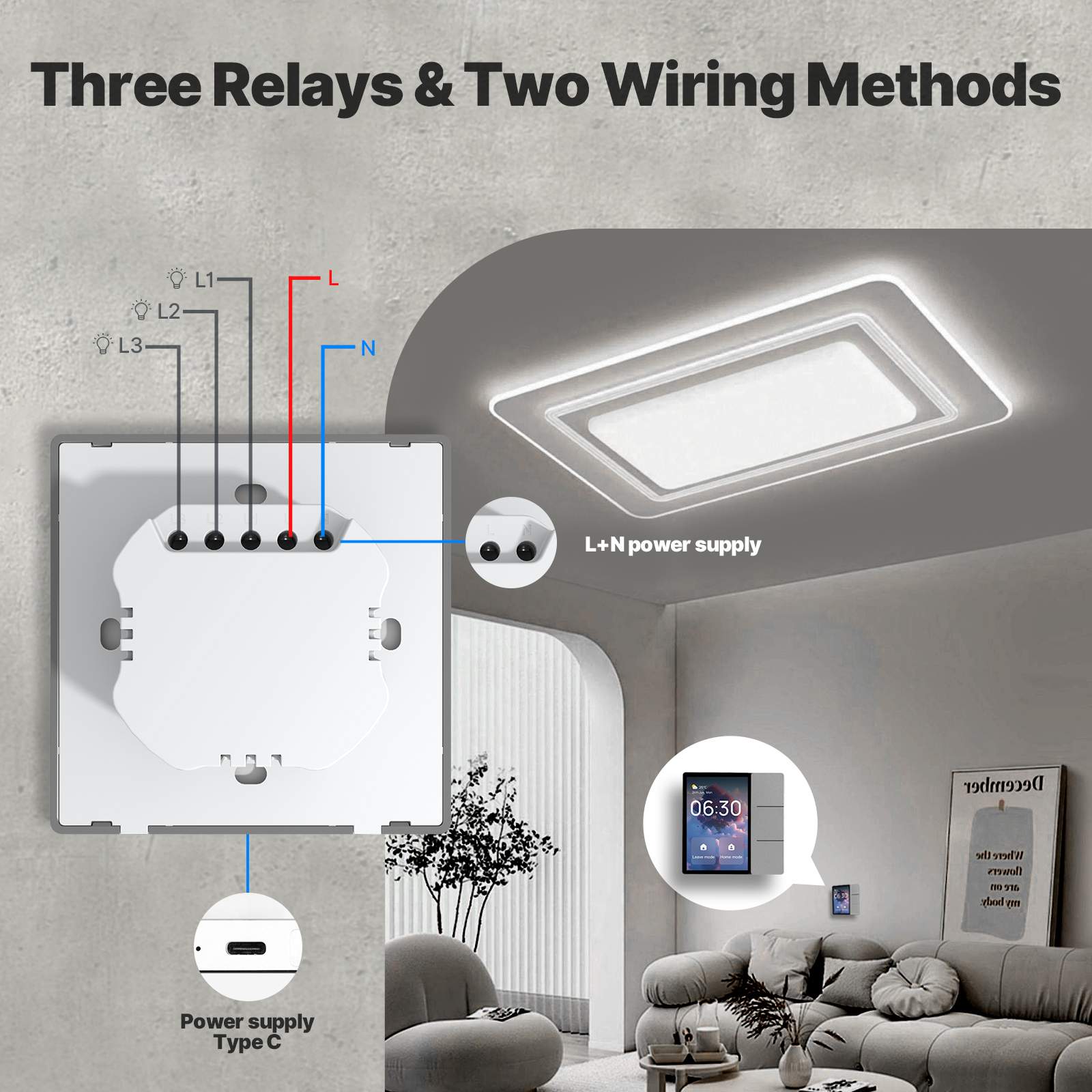

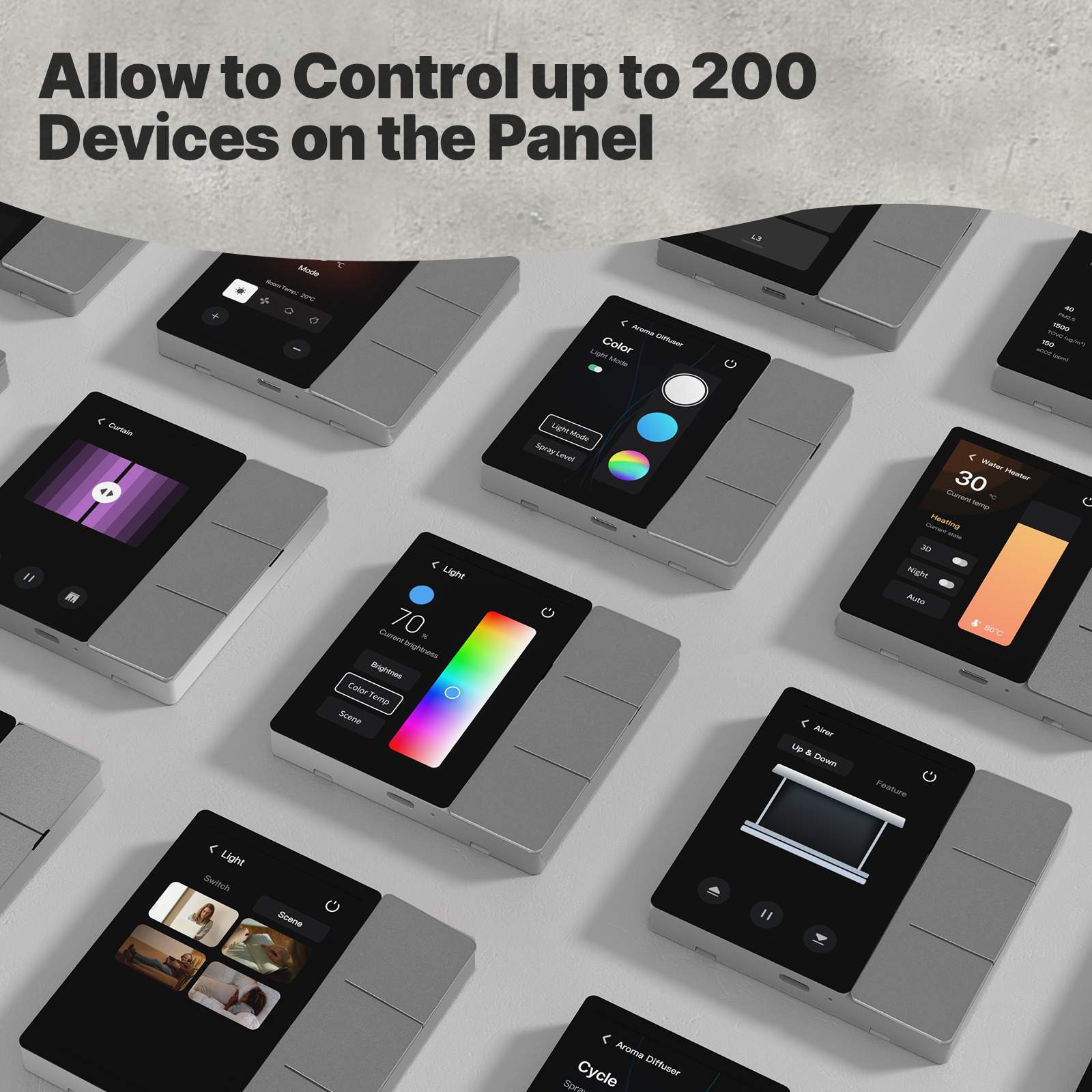

Featuring three independently controlled relays and two wiring methods, it easily adapts to different installation scenarios. Control up to 200 smart devices directly from the screen, including lights, switches, thermostats, and more.

Keep your home safe with the built-in security alarm features, which can be integrated with door/window sensors and motion detectors for real-time protection.

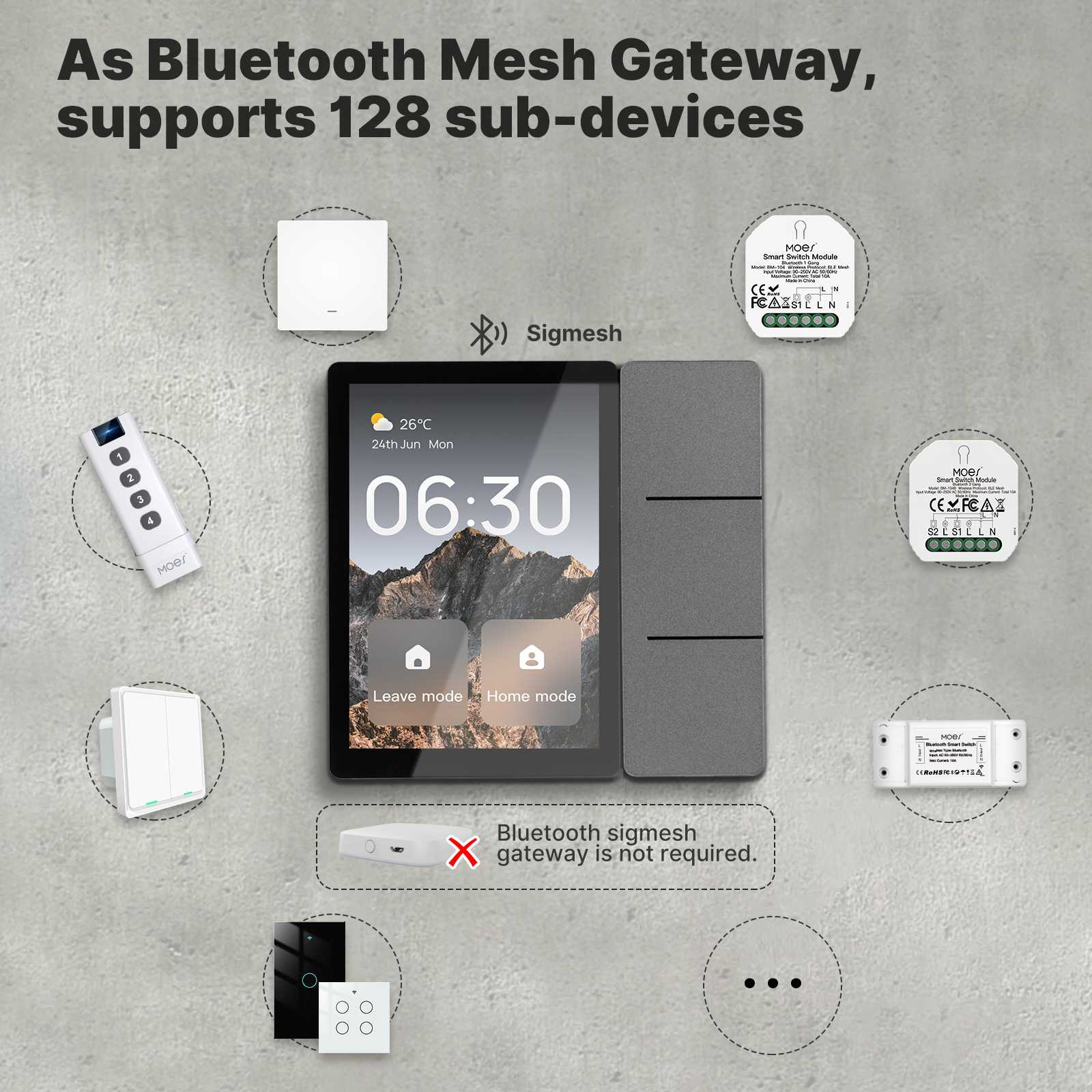

As a Ble Sigmesh gateway, this panel supports pairing with up to 128 Ble Sigmesh sub-devices, making it a perfect central controller for your entire smart home setup.

Smart, secure, and scalable — this panel is the smart core your home needs.

Features

  • Ultra-large screen ratio: 3.5-inch smart central control screen, the largest screen display area in its class.
  • Three separate relays & Sigmesh gateway integration: Efficient control integrating three separate relays and Bluetooth Sigmesh network.

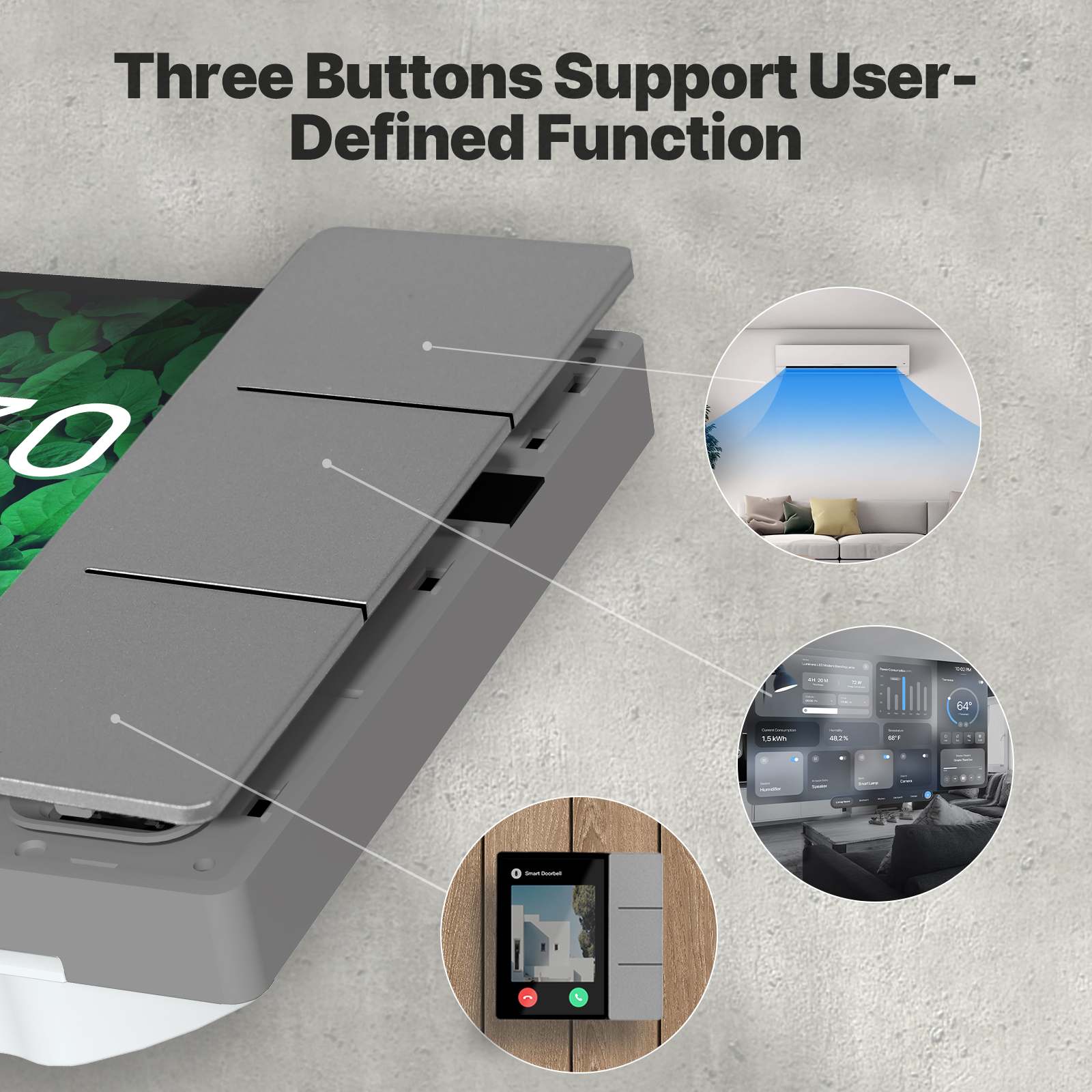

  • Instant control physical buttons: Equipped with three physical buttons to achieve quick function access.

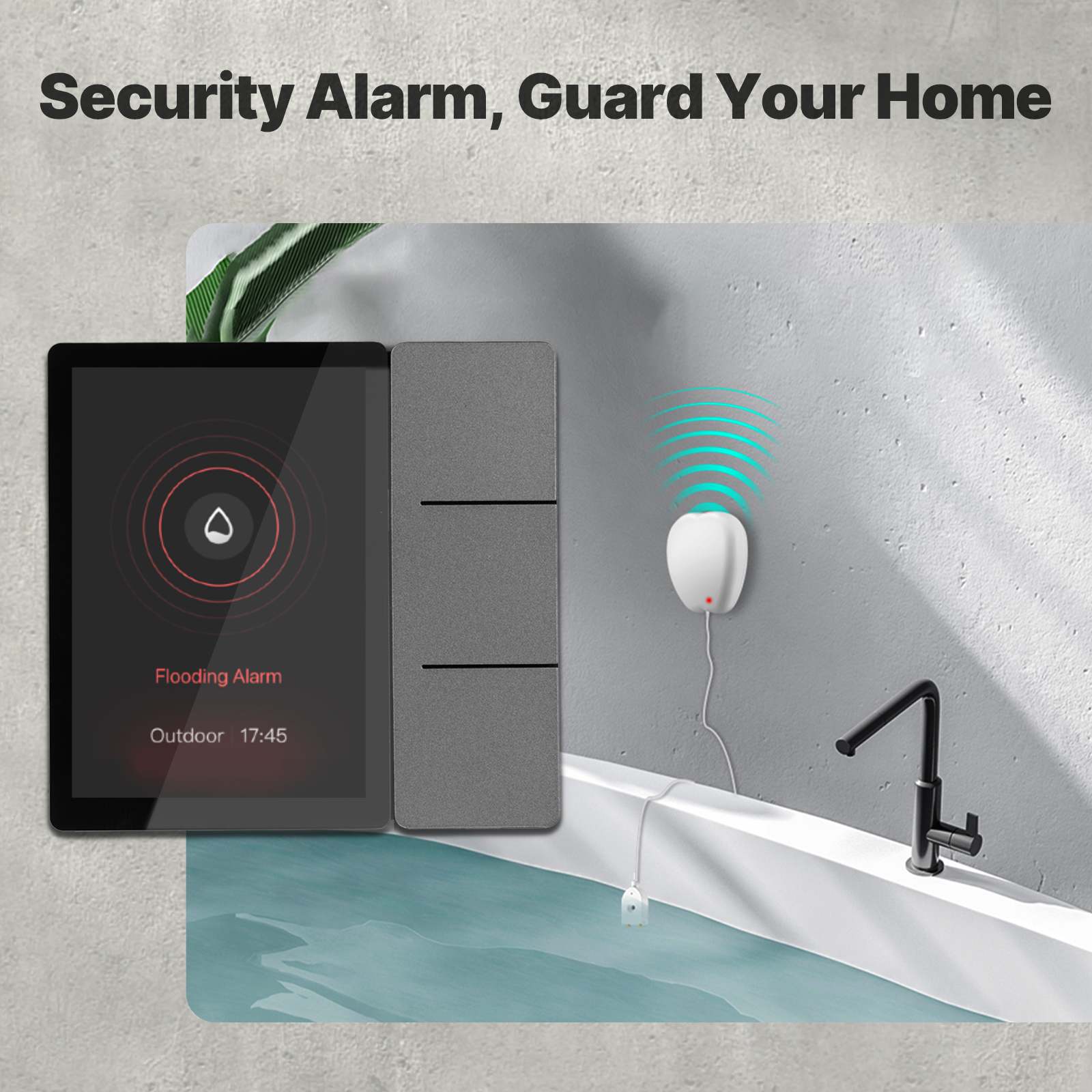

  • Security alarm: Automatically links with smoke, gas, water sensors, and SOS buttons. Sounds an alarm and shows an alert card when danger is detected.
  • Unlocking on screen: Realize direct control of smart door lock unlocking through screen.

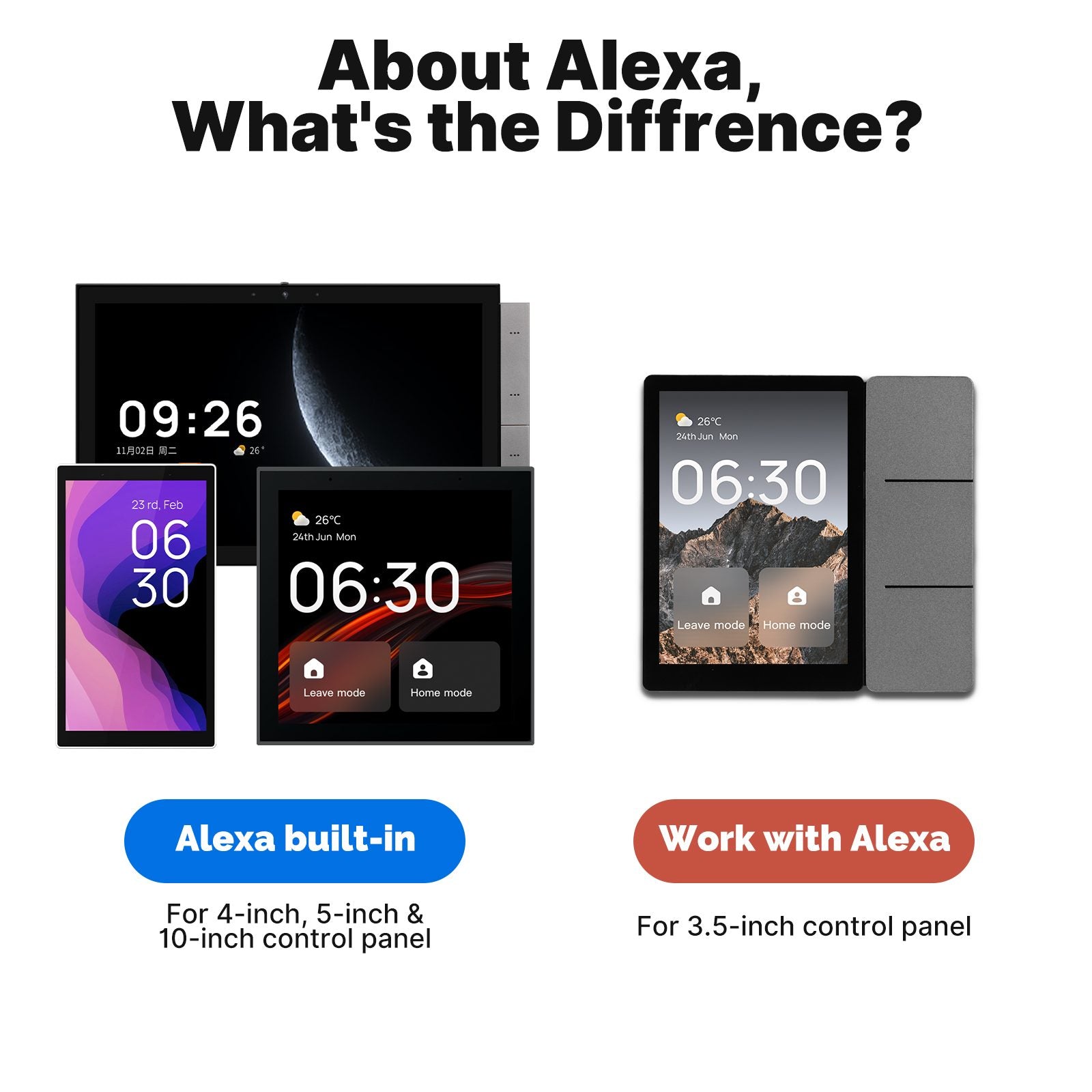

  • Work with Alexa: The Mini center control panels that work with Alexa cannot replace the voice function and require additional speakers to realize voice control.

Specification

  • Product Name: Smart Control Panel Mini
  • Product Model: CCP-S05
  • Input: 100-240V～；50/60Hz, 6A MAX
  • Wireless Protocol: Wi-Fi、Sigmesh
  • Maximum Load:
    Maximum total load: 600W
    Maximum load per channel: 200W
  • Operating Temperature: 0°C～40°C
  • Operating Humidity: 5% to 90% RH (Non-condensing)

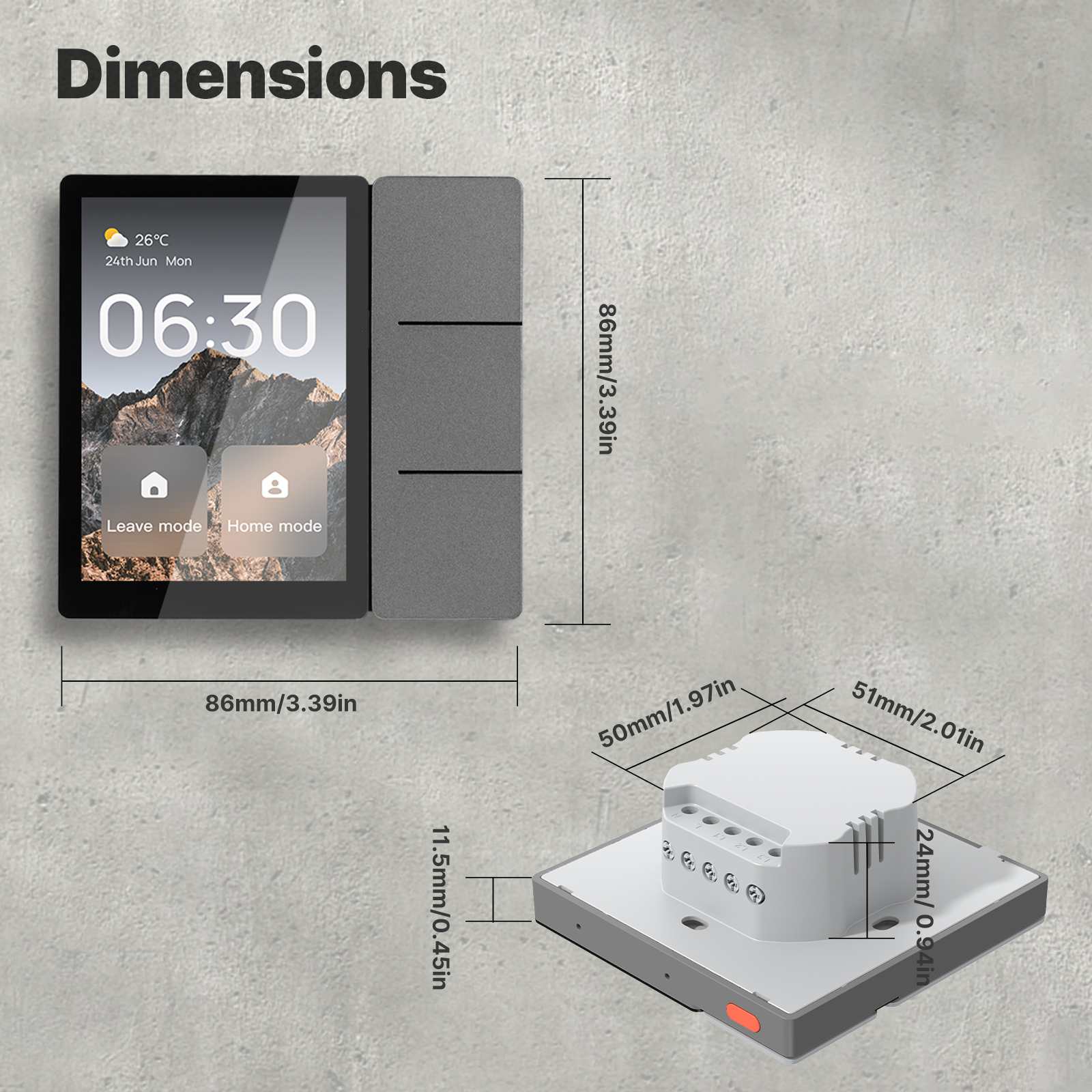

  • Size:
    86*86*11.5mm (excluding base)
    86*86*35.5mm (including base)
  • Frequency Band: 2400-2483.5MHz
  • Maximum Radio Transmit Power: 20dBm

Packing List

  • Smart Control Panel Mini*1
  • User Manual *1
  • Screw *4
  • Reset pin*1

Download PDF

Download PDF
View full details
Free Shipping Over $29.9
60 Days Refund | 2 Years Warranty
24/7 online support

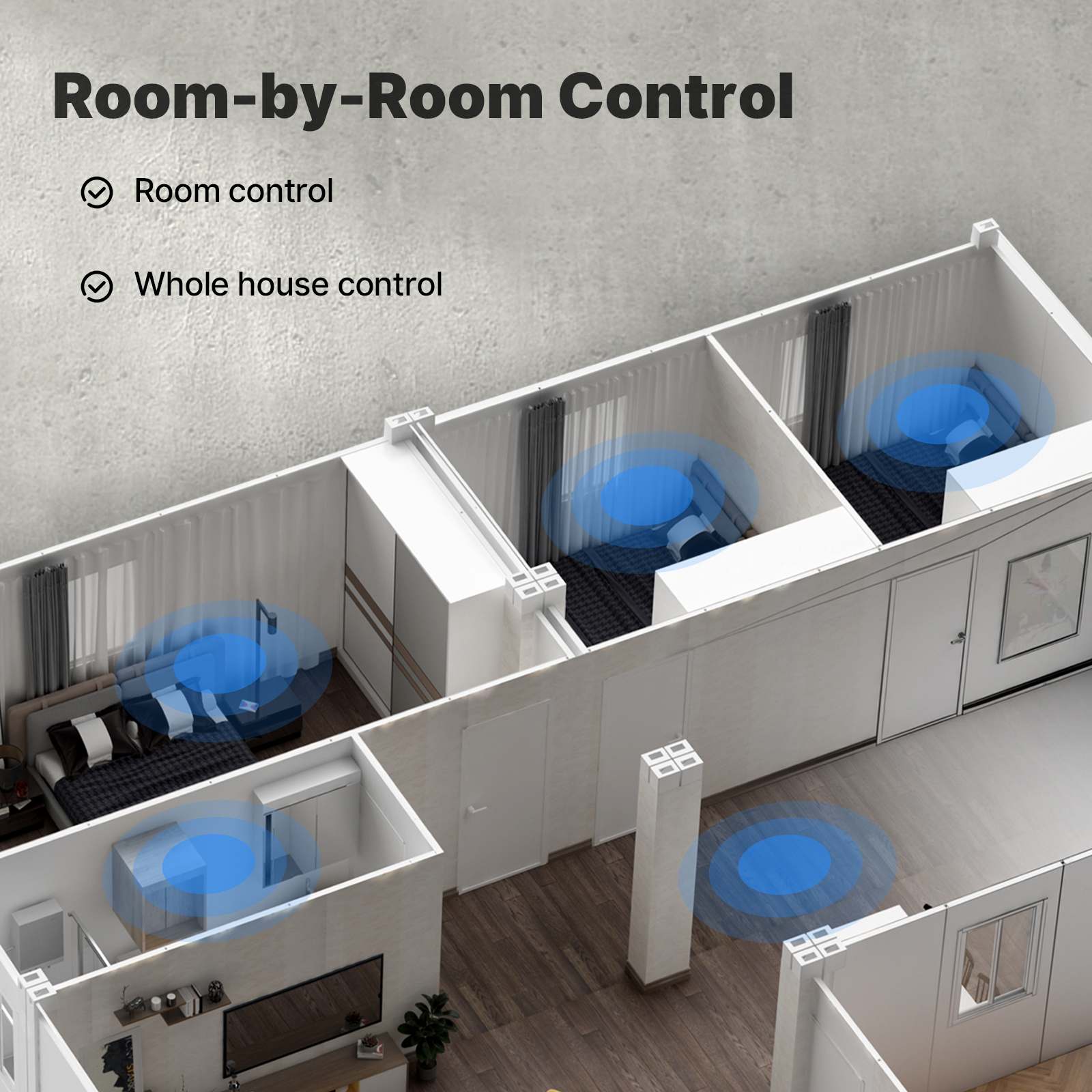

Room-by-room control

Mini supports single-room, multi-room, and whole-house partition control. When installed in the bedroom, you can only choose to display smart devices in the bedroom to avoid interference with
other areas, so that each partition can be controlled independently without interfering with each other.

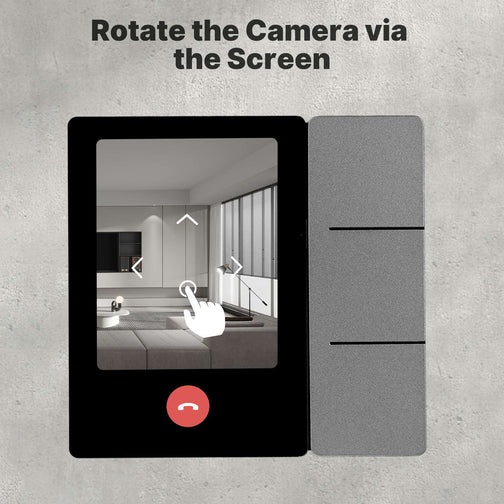

Rotate the Camera via the Screen

Touch to turn the live view up, down, left, or right on your 3.5-inch smart panel — check every corner with a simple touch.

Notice:
Connected smart camera devices must support screen view rotation for this feature to work.

More features with Center Control Panel

FAQ

What wireless protocols does the Smart Control Panel support?

The Smart Control Panel supports Wi-Fi, Sigmesh, and IR wireless protocols, ensuring versatile connectivity with various devices.

Can I add multiple sub-devices to the Smart Control Panel?

Yes, the Smart Control Panel includes a Bluetooth Mesh gateway function and supports adding up to 128 sub-devices.

Is the Smart Control Panel compatible with Alexa for voice control?

The Smart Control Panel is compatible with Alexa, but you will need an additional Alexa speaker to enable voice control.

Can the Smart Control Panel be used with existing home automation systems?

Yes, the Smart Control Panel can integrate with existing Wi-Fi or Bluetooth devices but cannot integrate with Zigbee devices.

How does the Bluetooth Mesh gateway function enhance the panel's capabilities?

The Bluetooth Mesh gateway function allows for extended connectivity, supporting up to 128 sub-devices and enabling seamless communication within a smart home ecosystem.

How many devices can be displayed and controlled on the Smart Control Panel?

The Smart Control Panel can display and control up to 200 devices on its screen, providing extensive management capabilities.
