Product Description:

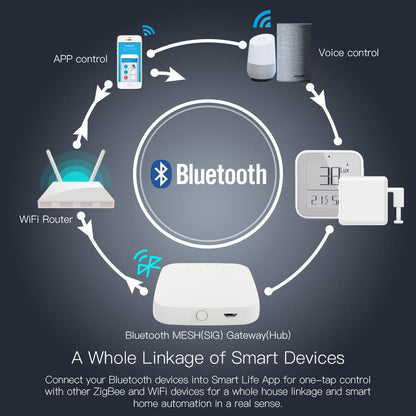

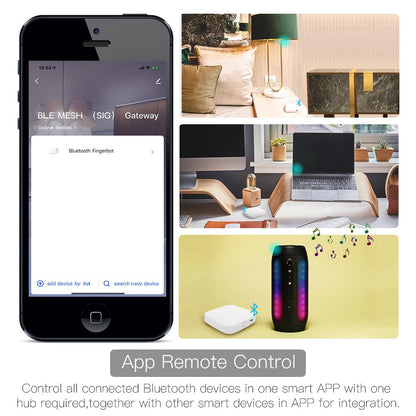

Bluetooth MESH (SIG) gateway is composed of highly integrated wireless WiFi module, Low energy wireless Bluetooth module and main board.Through the Tuya Smart APP, users can implement device addition, device reset, third-party control, and Bluetooth (single point & mesh) group control to meet smart home and other applications,featured as an extremely powerful smart home bridge for Bluetooth devices.
Main Features:

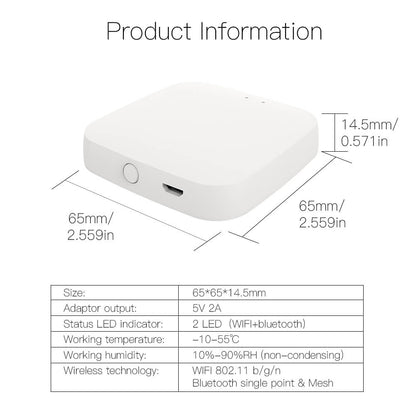

Parameter:
Size :65*65*14.5mm
Net weight:29g
Status LED indicator:2 LED (WIFI+bluetooth)
Button:1 (reset)
Power:Micro USB DC5V
Working current:<1A
Adaptor output:5V 1A
Working temperature:-10-55℃
Working humidity:10%-90%RH (non-condensing)
Storage temperature :-20-60℃
Storage humidity:5%-90%RH (non-condensing)
Hardware interface:1 Micro-USB
Wireless technology:WiFi 802.11 b/g/n
Bluetooth single point & Mesh
Maximum sub-device:Max Node =128
