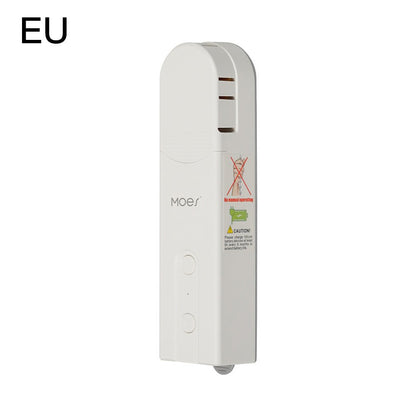

ZigBee Smart DIY Motorized Roller Blinds/Shades Drive Motor 2MQTT Setup Available Am43

SKU: ZM-LS-EU

Regular price $83.99 USD
$83.99 USD Regular price $0.00 USD Sale price
Save Liquid error (snippets/price line 121): Computation results in '-Infinity'% Sold out
Versions
Plug Type
Ship from
DISCOUNT CODE

MSHS25

$25 OFF

Over $100

DISCOUNT CODE

MSHS60

$60 OFF

ON ORDER OVER $200

Quantity

Features

  • ZigBee Hub Required for Smart Home Automation:
    The ZigBee version has a built-in ZigBee protocol and requires a compatible ZigBee hub for operation. Easily automate your existing blinds, shades, and curtains with a simple and cost-effective solution.
  • Flexible Home Assistant Integration:
    The ZigBee version is compatible with Home Assistant via ZHA and Zigbee2MQTT, giving you greater flexibility to choose your preferred ZigBee integration method.
  • Adjustable Upper & Lower Limits:
    Set and save the upper and lower limit positions of your blinds. The limit settings are retained even after the motor is powered off.
  • Voice Control & Smart Scheduling:
    Works with Alexa and Google Home through the MOES App, allowing you to control your blinds by voice and create custom schedules and timers for automatic opening, closing, or positioning.
  • Rechargeable Li-Battery with Included Adapter:
    Powered by a rechargeable lithium battery and supplied with a charging adapter for convenient long-term operation. Its low-power design helps reduce the need for frequent charging while saving energy.
  • Quick & Easy Installation:
    Install and set up the blinds drive motor in minutes. It is compatible with both plastic and metal looped beaded chains, making it suitable for a wide range of existing blinds and shades.
  • Important Compatibility Note:
    This feature is not applicable to low-current ZigBee devices and does not support ZIGMESH functions.
  • Maximum Load Capacity:
    The motor supports a maximum load of 3.5 kg (7.7 lbs).
  • Power Requirement:
    This curtain motor must be connected to a power outlet during operation.

Specification

Parameter:

  • Model:AM43-0.45/40-ES-EB
  • Input Power:DC charger 8.4VDC
  • Lock-rotor current:1.8A
  • Speed Range:20-40rpm
  • Torque:0.45Nm
  • Rated Current:1A
  • Battery Capacity:7.4VDC/1000mAh
  • Frequency:2.4GHz
  • Password:8888
  • Max weight: 3.5KG

Packing Listing:

  • Moes Smart Blinds Drive Motor*1
  • Screw*2
  • Gear*3
  • VHB Tape*1
