WiFi Smart Stromverbrauchs-Energieüberwachungsmessgerät 110V/220V

Upgrade your home electrical safety with the MOES Tuya ZigBee Smart Circuit Breaker, designed for real-time monitoring and powerful overload protection. Supporting up to 63A load current, this smart breaker features a UL94 V-0 fire-retardant housing for enhanced reliability and safety in any installation environment.

With built-in energy monitoring, the device tracks current, voltage, and power dynamically while automatically generating hourly, daily, monthly, and yearly consumption reports. Easily manage your circuits via the MOES / Smart Life / Tuya App, where you can remotely control power, customize alert thresholds, and set automation rules.

The breaker also includes timing functions, restart memory modes, and comprehensive protection alerts for overcurrent, overvoltage, and undervoltage conditions — ensuring 24/7 electrical safety for your household or business.

• Real-Time Electricity Monitoring: Track current, voltage, power, and total energy consumption in real time for efficient energy management and long-term insights.
• Comprehensive Alert System: Built-in protections send overcurrent, overvoltage, and undervoltage alerts, keeping your electrical circuits safe at all times.
• Customizable Relay Status Settings: Supports On / Off / Power-Restart Memory modes, allowing you to choose the breaker’s default state after power restoration.

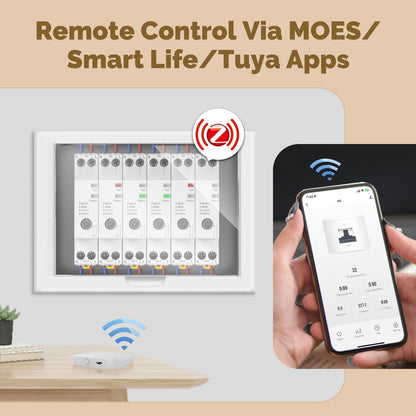

• App Remote Control & Adjustable Alert Thresholds: Through the Tuya Smart / Smart Life / MOES App, you can manage circuits remotely, set alert thresholds, schedule timers, and automate daily operations.
• Fire-Retardant Housing & 63A Load Support: Made with UL94 V-0 fire-retardant materials, this breaker supports up to 63A high load, suitable for heavy-duty household and commercial applications.
• NOTE: A ZigBee gateway is required for smart features. Please purchase separately.

• Model：A5
• Voltage：Voltage
• Specifed operating voltage：90%Un~110%Un
• Extended operating voltage：80%Un~115%Un
  80%Un~115%Un：1-63A
• Frequency range：50+5%)Hz
• Power consumption：<1.5W
• Operating temperature：-20℃~70℃
• Operating humidity：<95%
• Dustproof and waterproof：IP20
• Product size：91.1mm*18mm*65.5mm
• Frequency Band：2.400-2.483GHz
• Maximum Radio Transmit Power：<+20dBm

Packing List

• Smsrt circuit breaker *1
• Manual *1
