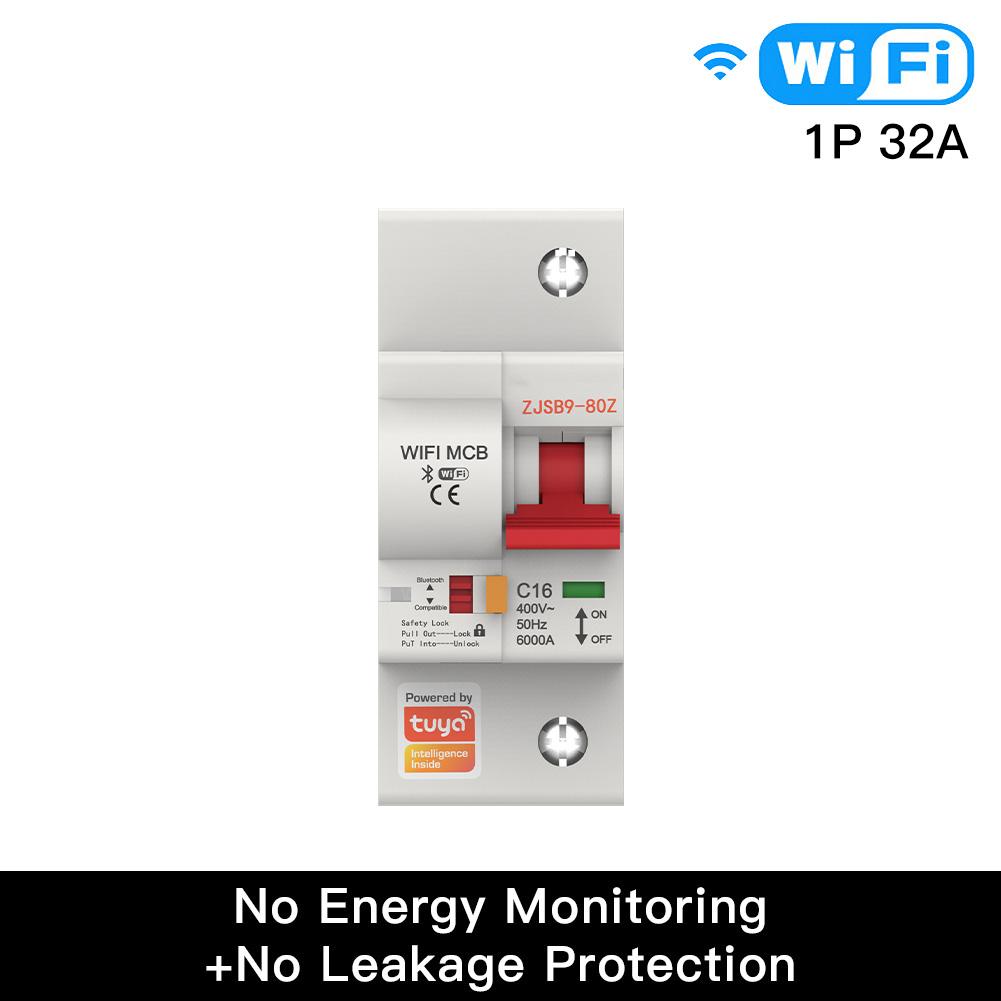

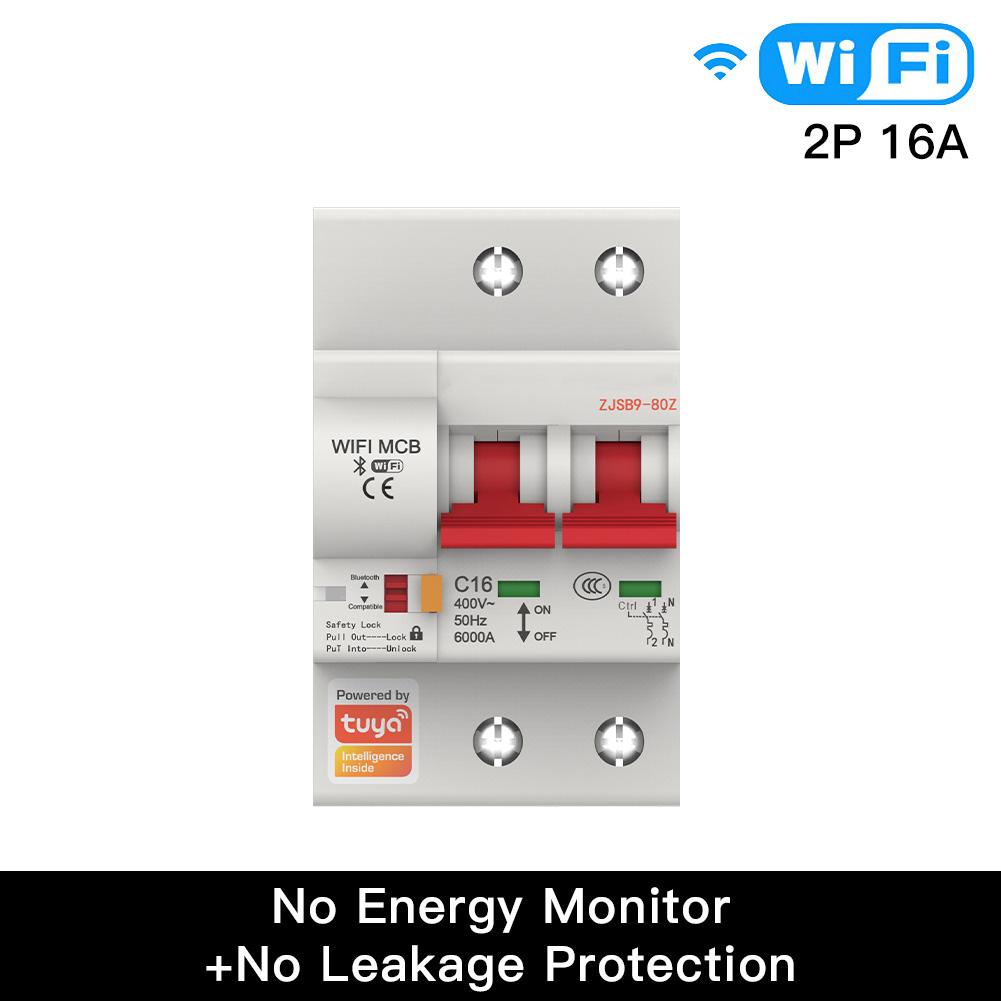

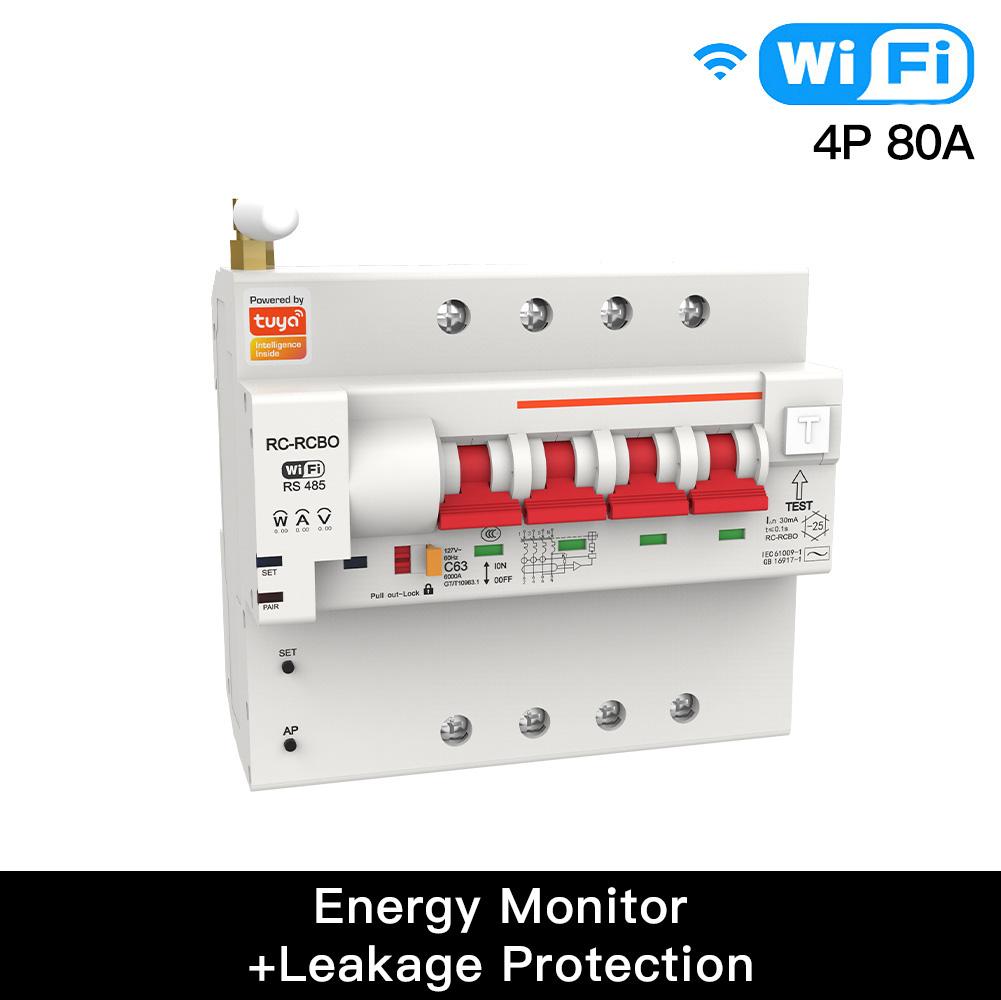

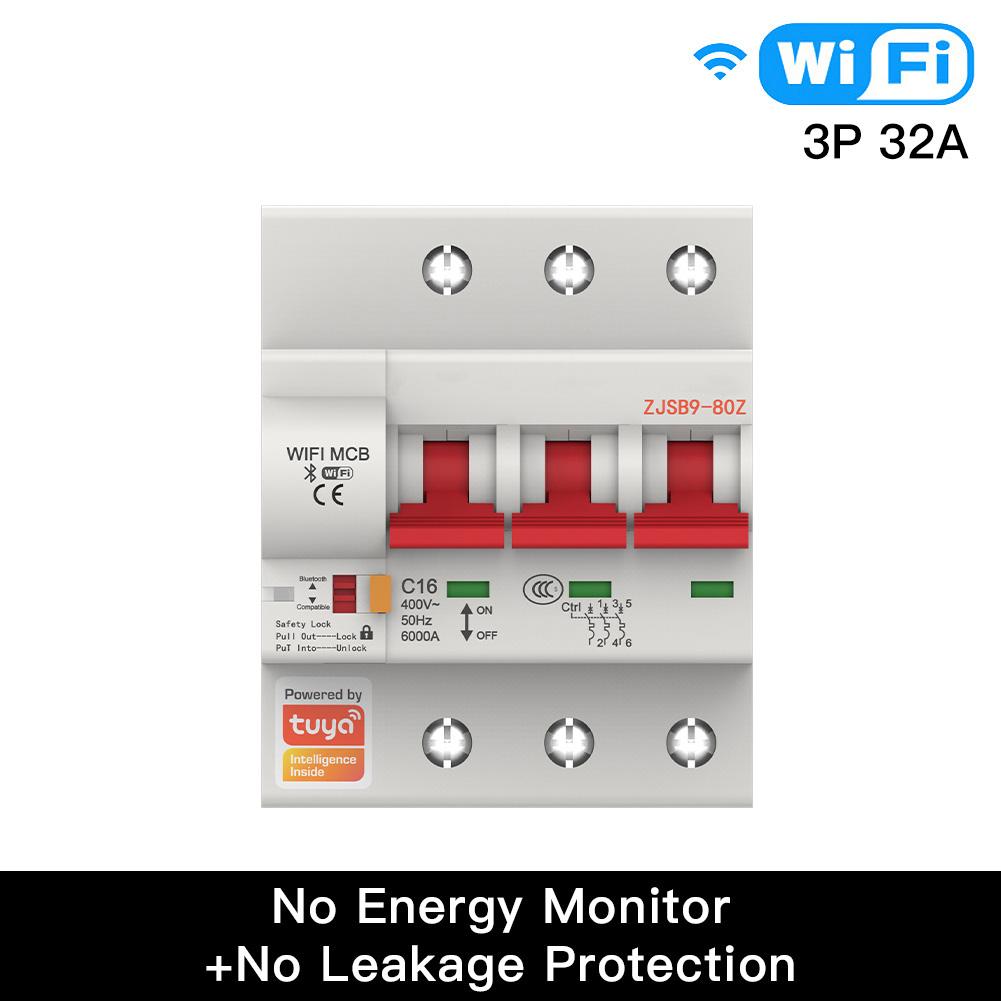

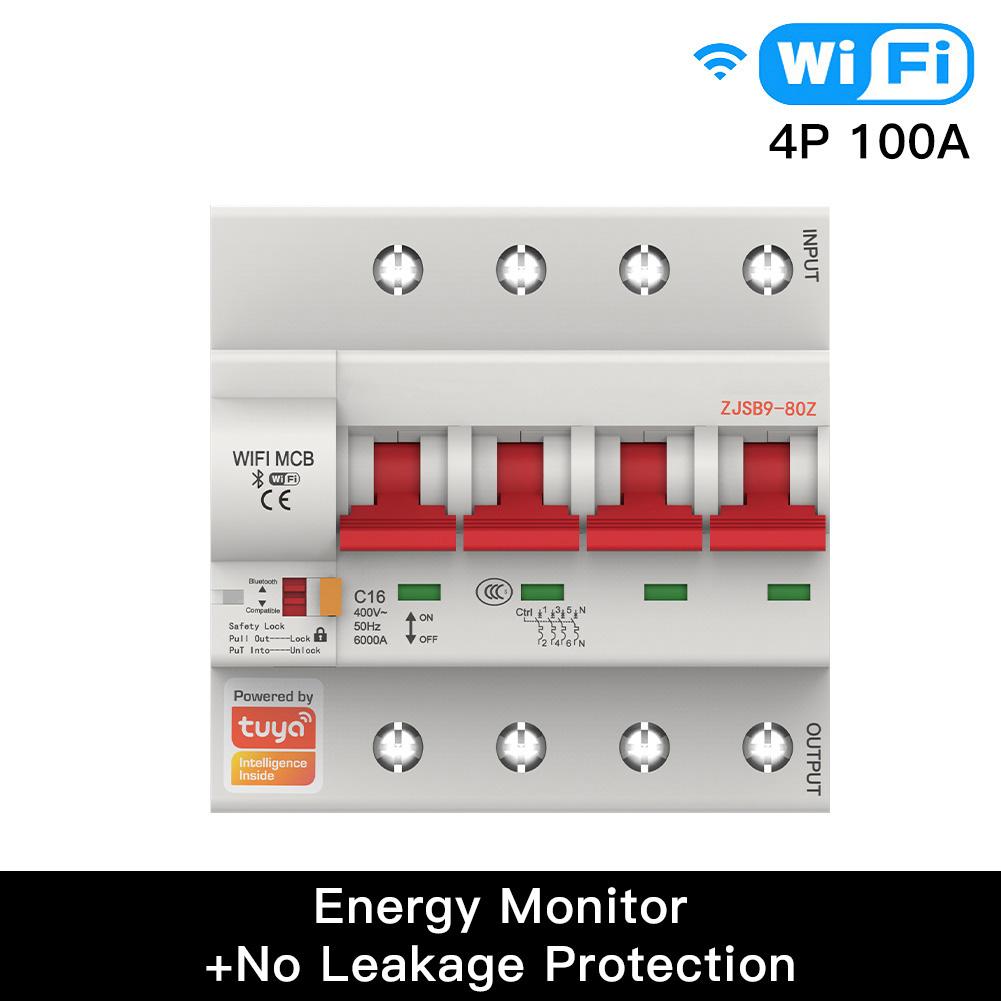

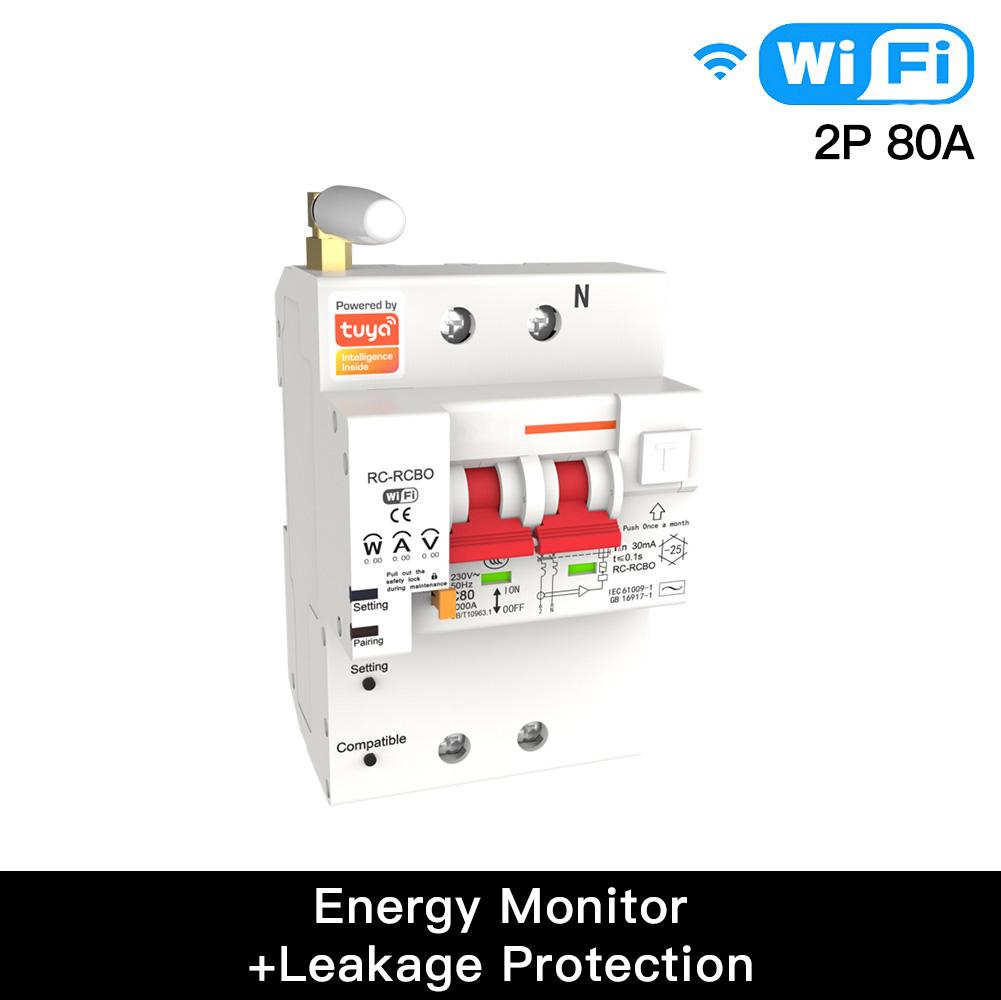

WiFi Smart Circuit Breaker IoT Air Switch Overload Short Circuit Surge Protection
WiFi Smart Circuit Breaker IoT Air Switch Overload Short Circuit Surge Protection
SKU:
FREE SHIPPING
We currently offer FREE&ORDINARY SHIPPING for the most countries (except remote countries/areas), for orders over $29.9.
We currently offer FREE&FAST/ FREE&DDP SHIPPING for the most countries (except remote countries/areas), for orders over $299.
3 METHODS OF SHIPPING COST
We charge a flat rate for shipping, as follows:
（*DDP ONLY supports EU regions.）
Shipping costs for different countries are adjusted according to logistics costs, which can be directly checked at checkout.
Or, you can know more shipping details here Shipping Policy, or by contacting customer service team via services@moeshouse.com.
Different delivery zone has different shipping fees based on the above form.
DELIVERY TIME
Processing time = the order preparation time may take 1-3 business days;
Shipping time = the time between when your order has been shipped and delivered to you ( 3 - 21 business days ), which depends on your delivery methods and zone.
Once your order ships, you can track your order with your tracking number. If you have trouble tracking your package, click here Track Your Order or feel free to contact MOES customer service team via services@moeshouse.com and we will check its status for you.
NOTE
Your local country's customs may hold the shipment and request that you pay customs duties. Please note that all customs duties are the sole responsibility of the customer and we are not liable. Thank you for understanding!
Couldn't load pickup availability
Features
Features
- After pairing it to your devices,you are able to enjoy most smart features of the breaker.(Note:when you are operating the handle to turn on or off,it will remain about 3 seconds before turning off again.) Besides,it is suitable for 50Hz,230V/400V/0-100A circuit which contains various advantages about protection,like overload and short circuit,over voltage and under voltage protection.
- Hands-Free voice control for WiFi type with no hub required: Compatible with Amazon Alexa and Google Home for easy voice control.
- Wireless Remote Control: Conveniently control your connected devices with the free mobile “Smart Life”phone App no matter where you are.(Compatible with Android&iOS.)Control your appliances in advance when you are away from home;Restart status,light mode and backlight ON/OFF are all functional.
- Timer Setting: Take full control of your connected appliances intelligently with the timer feature on your App,which owns a 5+1+1 day programmable schedule .Besides,it is designed with circulate,random and inching schedule feature for more flexible timer control.
- Family Sharing: Support multiple phones to control one breaker or one phone to control multiple breakers at the same time; a much easier pairing mode for adding the device with WiFi and Bluetooth.
- Attention:
This product only supports above input, down output.
Then don't reverse, otherwise the handle can't push up.
Some customers have a distribution box at home, the input line is below, and the output is above.This situation should turn our circuit breaker upside down.

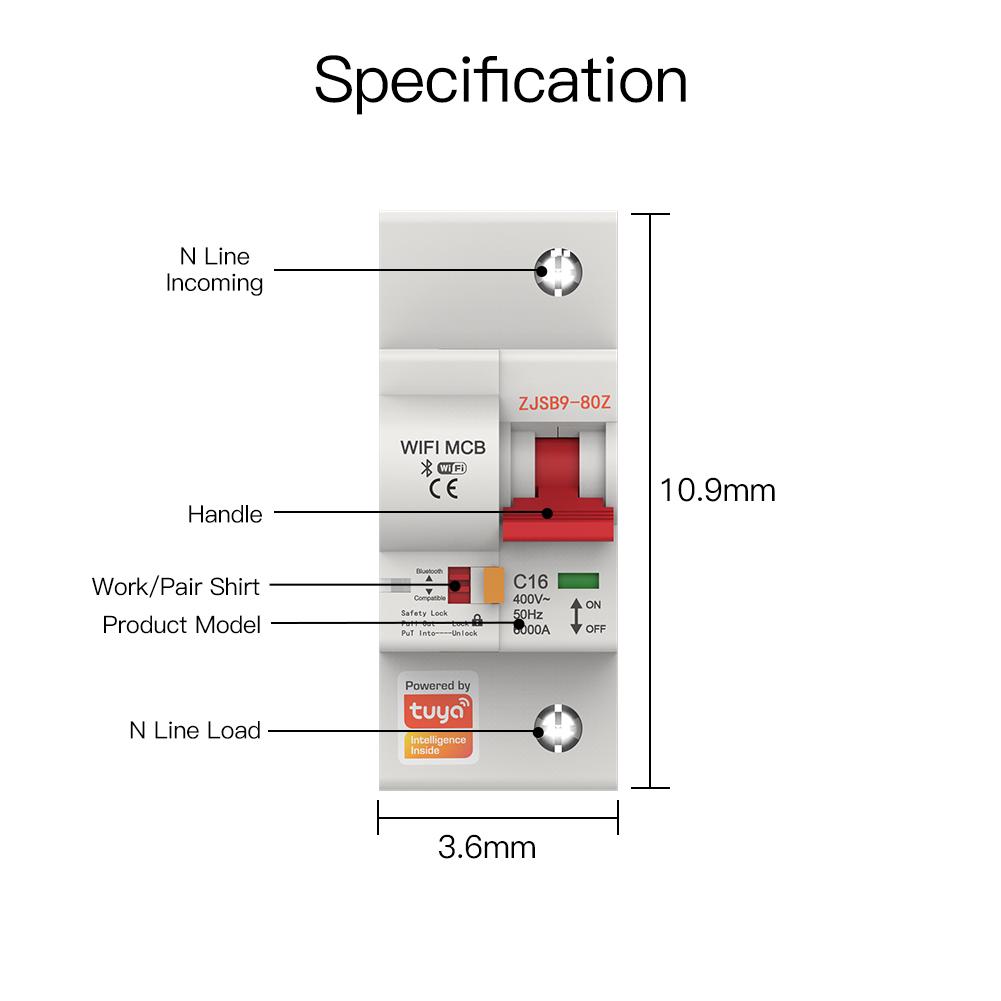

Specification
Specification
Parameter
- Standard:GB10963.1;IEC60898-1
- Rated Voltage:AC 230V 1P 2P/ AC 400V 3P 4P
- Frequency:50Hz
- Pole Number:1P 2P 3P 4P
- Anti-pollution Grade:2
- Protection Grade:IP20
- Installation Category:II,III
- Ambient Temperature:-25℃~+65℃
- Frame Grade Rated Current:125A
- Rated Current:32A,40A,63A,80A,100A,125A
- Instantaneous Tripping Characteristic:C
- Rated Short Circuit Breaking Capacity:6kA
- Rated Impact Withstand Voltage:6kV
- Mechanism Life:>10000times
- Electrical Life:>6000times
Package Listing
- 1*circuit breaker
- 1*user guide
